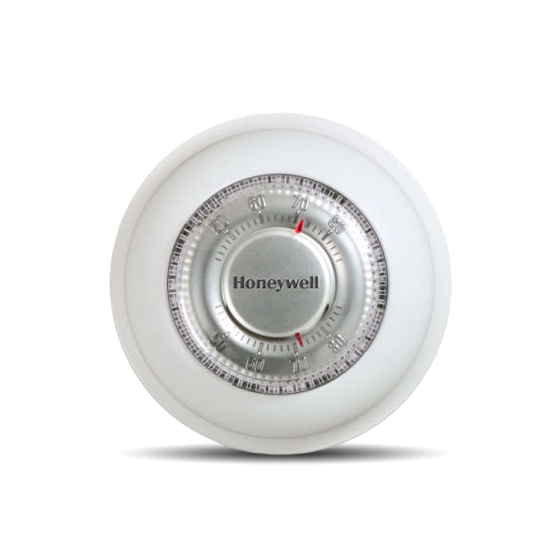

Honeywell Home Round Non-Programmable Thermostat with 1H Single Stage Heating
Overview
The Round® thermostats provide electronic control of 24Vac heating and cooling systems with the classic twist to set dial.
Features
• Mercury Free.
• Classic Styling.
• Premier White®.
• The T87K heat only works with 2 or 3 wire heat-only systems.
Product Specifications
Hazmat Information
• Button cell contained in equipment, Lithium metal button cells only contained in equipment, excepted per PI970
Application
• Heat Only
Dimensions (in.)
• 3 11/16 in. diameter x 1 3/4 in. deep
Dimensions (mm)
• 94 mm diameter x 45 mm deep
Item Type
• Product
Mounting
• Round
Electrical Ratings
• 20 to 30 Vac
Frequency
• 50 Hz; 60 Hz
Stages
• 1 Heat
Operating Humidity Range (% RH)
• 5 to 90% RH (non-condensing)
Supply Voltage
• 20 to 30 Vac
Power Method
• Battery assisted power stealing
Sensor Element
• Thermistor
Accuracy (F)
• ± 2 F
Accuracy (C)
• ± 1 C
Color
• Premier White®
Switch Type
• Relay
Terminal Designations
• R, W, Y
Setting Temperature Range (F)
• 40 F to 90 F
Cycles per Hour
• Adjustable 1, 3, 5, 9
Heat Current
• 0.02A to 1.0A running
| Electrical | |
|---|---|
| Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
