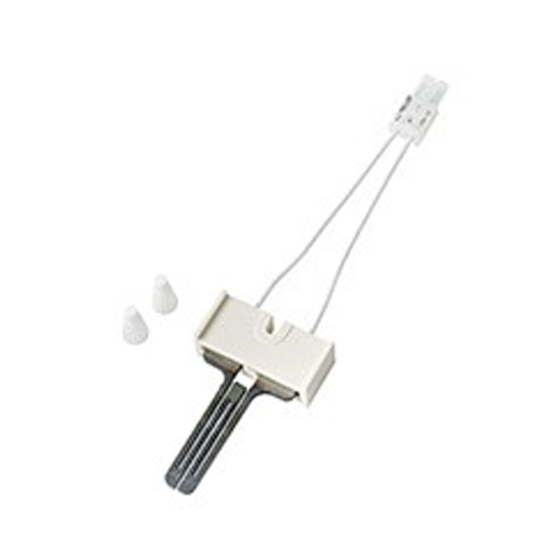

Robertshaw® Silicon Carbide Hot Surface Igniter 120Vac 4-1/2" Leads
Item
41-407
PRODUCT DETAILS
The Robertshaw® Carbide Series Hot Surface Igniters deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.
FEATURES & BENEFITS
• Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties.• Designed to reach ignition temperature(s) within 17 seconds.
• Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity.
• Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection.
• Operate at 120Vac. Some modules are rated for 208/240V input, however, the voltage to the igniter is stepped down to 120V AC.
• Leads: 4-1/2"
• Voltage: 120Vac
Electrical | |
---|---|
Voltage | 120 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 1.000000 |
