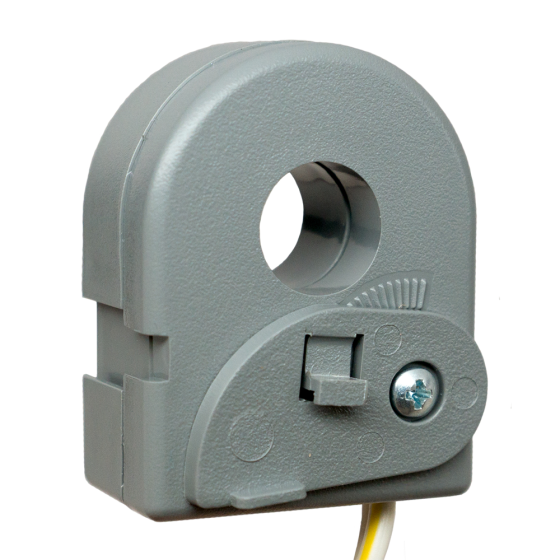

Solid-Core, Fixed Current Switch, 0.25-150A, Wire Leads
FEATURES & BENEFITS
• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Max Sense Voltage: 600 Vac
• Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS
• Mounting/Installation: Removable mounting tab provided. The wire clamp locks against the wire being monitored, securing the unit in place.
• Sensor Contact Output: Current below threshold: Open ; Current above threshold: Closed
• Sensing Range: .25-150A
• Core Type: Solid
• Threshold: Fixed .25A
• Sensor Contact Type: Solid State Switch SPST
• Switching Voltage Range: 30Vac/dc
• Maximum Switching Current: .4 Amps Max
• Sensor Contact Termination: White/Yellow 16" 18 AWG Wire Leads
Sensor Contact:
• Solid State Contact
• When sensor contact is off (open), leakage <30 uA @ 30Vac/dc
• When sensor contact is on (closed), voltage drop < .3 Vac/dc @ .1 Amp < 1.6 Vac/dc @ .4 Amp
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
