FEATURES & BENEFITS

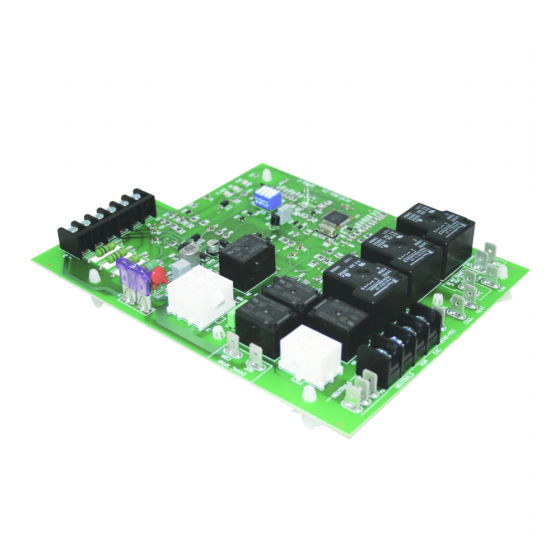

• Low cost form, fit and functional replacement for Rheem 62-24084-82 circuit boards.
• Microprocessor-based design.
• Monitors pressure, roll-out and limit switches.
• Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor.
• Reverse polarity detection.
• Twinning compatible with other ICM288 control boards.
• Diagnostic LEDs for testing/troubleshooting
• Voltage Range: Line 98-132 VAC @ 60HZ
• Ignitor: 5A, 120 VAC
• Cool Blower: 10A, 2HP, 240 VAC
• Heat: 5A, 1/2 HP, 250 VAC
• Inducer Blower: 4A, 120 VAC
• Gas Valve: 1A, 24 VAC
• Humidifier Motor: 0.5A, 24 VAC
• Electronic Air Cleaner: 1A, 120 VAC
REPLACES
• Rheem: 62-24084-82
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
