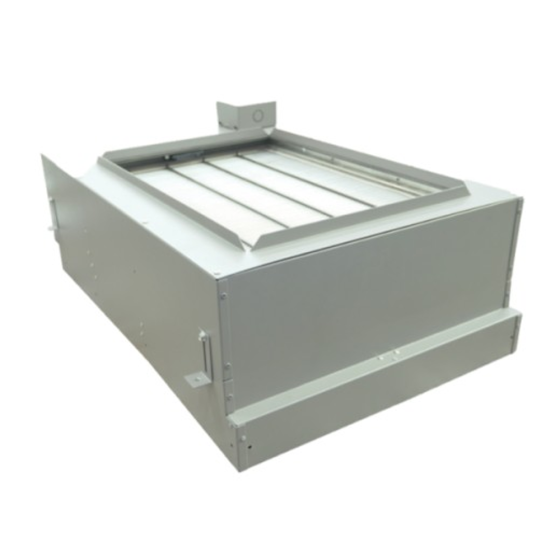

Return Air Purifier for Gas Furnaces 115/208/230Vac, 16" x 25", 1,600CFM (MERV 15)

FEATURES

The RGAPAXX1625 Return Air Purifier is designed for use in the return air duct of a forced air heating, cooling, and ventilation system.

It combines superior filtration efficiency, MERV 15, with pathogen-killing technology to deliver maximum air purification.

MERV is a filter efficiency standard ranging from 1 to 16 (higher MERV = higher efficiency). The air purifier achieves a MERV 15 rating based on third-party testing (2012) showing 95% of particles size 1.0 to 3.0 microns captured and 85% of particles size 0.3 to 1.0 microns captured.

The RGAPAXX1625 Return Air Purifier is designed to require minimal maintenance. Maintenance is limited to the replacement of the air purification cartridge and inspection/brush cleaning of the ionization array. Frequency of air purifier cartridge replacement and cleaning of the ionization array may vary depending on ductwork design and local environmental conditions.

Filtration Performance
High efficiency MERV 15, meets flow 0.10 @ 800 CFM

Purification Performance
Featuring patented Captures & Kills® technology, the Infinity® air purifier offers proven, third-party tested effectiveness with a 99% inactivation of captured viruses and germs when used as instructed, including:
Coronavirus
Common cold surrogate
Bacteria that causes strep throat
Human influenza
The air purifier has demonstrated effectiveness against the murine coronavirus, based on third-party testing (2020) showing a >99% inactivation, which is a virus similar to the human novel coronavirus (SARS-CoV-2) that causes COVID-19. Therefore, the air purifier can be expected to be effective against SARS-CoV-2 when used in accordance with its directions for use. Third-party testing (2012, 2007) also shows ≥99% inactivation for the type of virus that causes common colds, Streptococcus pyogenes and human influenza. Airborne particles must flow through your HVAC system and be trapped by the filter to be inactivated at 99%.

Works With Gas Furnace Equipment

Simple Maintenance
Virtually no cleaning required. Simply change purifier cartridge periodically and brush off array.

Easy to Install
Adjustable L-brackets to fit 2 x 4 and 2 x 6 joists.

Replaceable Filters
Pull down access to replace filters from inside the home.

Solid-State Power Supply
Power supply is a highly reliable, dual voltage compatible, state-of-the-art, solid-state device.

Durable Cabinet
Heavy-gauge steel cabinet and frame.

Agency Listed
Model RGAP Air Purifier is UL (Canada and US) listed.

SPECIFICATIONS

• Weight, shipping Lbs (kg): 60 (27)
• Filtration Efficiency Per ASHRAE 52.2 2007: MERV 15
• Filter Media Surface Area Sq. Ft. (Sq. Meter): 50.8 (4.7)
• Replacement Filter Dimensions Inches (cm): 17.3 x 24.9 x 2.6 (44 x 63 x 7)
• Electrical: Dual voltage power supply 115/60/1, 208-230/60/1 built into door. 6 ft. conduit with (3) 18AWG wires with quick connect terminals
• Max Power Consumption: 22 Watts
• Purification Performance: 99% inactivation for murine coronavirus, human influenza virus, common cold virus, streptococcus bacteria
• Cabinet & Color: G60 steel, Granite Grey, RoHS compliant
• Maximum Air Flow CFM (LPS): 1600 (755)
• Dust Holding Capacity @ 0.5 in wg at max airflow (grams ASHRAE Dust): 37
• Ozone Produced (max allowed is 0.05 PPM)
Maximum ozone produced at 375 CFM is 0.014499 PPM.
Meets EPA and CA limits based on CSA 22.2 #187-20
Maximum ozone produced at 2200 CFM is 0.002231 PPM.
Meets EPA and CA limits based on CSA 22.2 #187-20
• Replacement Filter P/N (2-pk): AGAPXCAR1625-A02
