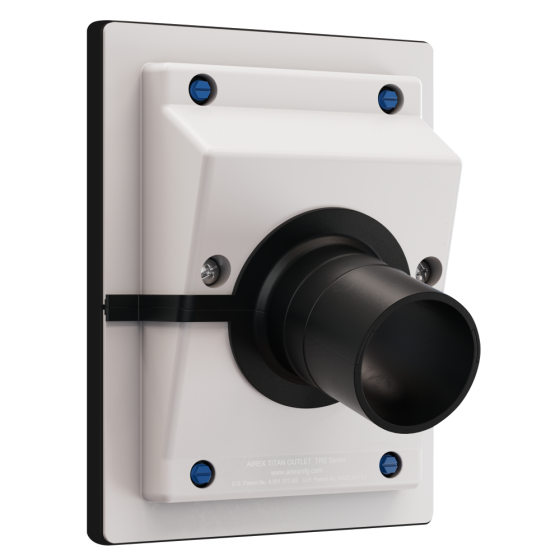

Retrofit Titan Outlet™ Line Set Wall Outlet, 2.38" Diameter (White)

FEATURES

The AIREX TITAN OUTLET™ is an engineered wall enclosure system that seals and protects HVACR piping penetrations from weather damage, air leakage, pipe vibration, and pests to help HVACR professionals aesthetically meet mandatory building requirements and energy efficiency standards. Utilizing weather resistant and outdoor durable engineered polymers, the AIREX TITAN OUTLET™ enclosure is made of ASA polymer, while the elastomeric outlet sleeve is made of an engineered TPE polymer for airtight sealing around HVAC piping. The enclosure and sleeve are bonded together through a process called over-molding, chemically and mechanically bonding them together as one piece. The wall surface gasket attached to the outlet enclosure is durable PVC foam that creates a positive seal on irregular surfaces. Included accessories consist of 4 carbon steel anchor screws and one stainless-steel clamp to ensure outdoor installation durability. Utilize the AIREX TITAN OUTLET™ to aesthetically meet mandatory building requirements and energy efficiency standards.

• Improves HVACR equipment performance by protecting from weather and physical damage.

• Creates highest quality positive gasket seal, protecting from weather, eliminating rodent and pest intrusion, ending wall air leakage, reducing moisture damage to walls, increasing overall energy efficiency, and improving indoor air quality.

• With a sleek architectural finish, it improves the aesthetics of HVACR, plumbing, conduit, and other outdoor piping penetrations.

• Superior quality and excellent heat/chemical resistant materials and integral over-molded flexible elastomeric sleeve design ensures long-lasting durability.

• Meets mandatory building, energy, residential, mechanical, and green codes

• Made in the USA

• Engineered design supports HVAC systems with wall isolation & anti-vibration features

• Includes corrosion resistant hose clamp, anchor screws with elastomeric washers and lubricant for a long-lasting installation.

• Available in standard 3/16” gasket, as well as thicker 3/4” gasket ideal for uneven wall surfaces like lap siding or rugged masonry.

SPECIFICATIONS

Diameter: 2.38" (6cm)
Suction Line Insulated: Fits: 3/4" wall thickness with 5/8", 3/4”, 7/8" tube
Both Lines Insulated (Mini Splits - Heat Pumps): 1/2” Wall Insulation Thickness

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	5.000000
Exterior Dimensions (W) (inches)	8.000000
Exterior Dimensions (H) (inches)	10.000000
Shipping Weight (lbs)	2.000000

Resources

TRS-575-W_Installation.pdf

TRS-575-W_Submittal.pdf

TRS-575-W_Warranty.pdf
