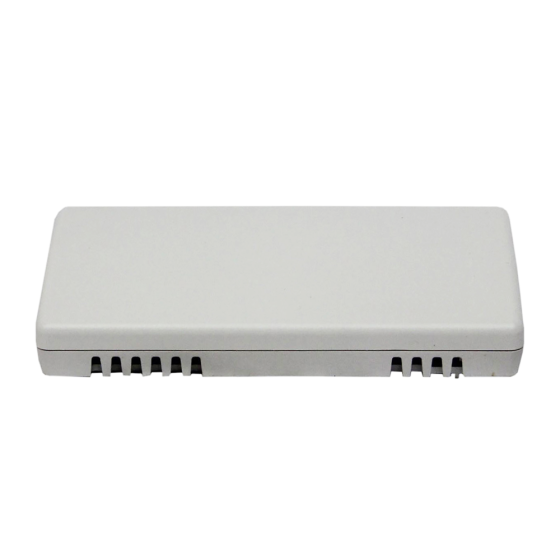

Honeywell Averaging Temperature Sensor Wall Module, 10 kΩ, Non-Linear

FEATURES

• Special 10K ohm for use only when averaging multiple sensors, can also be used with Thermostats
• Mounting: Wall or standard 2 x 4 inch junction box or on a 60 mm diameter junction box; Vertical mount
• Color: White
• Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
• Setpoint Temperature Range: 55°F to 85°F (13°C to 30°C)
• Operating Temperature Range: 45°F to 99°F (7°C to 37°C)
• Approximate, Dimensions: 4 13/16 in. high x 3 in. wide x 7/8 in. deep (122 mm high x 76.5 mm wide x 22 mm deep)
• Approvals, Underwriters Laboratories Inc.: UL94-HB plastic enclosure
• Approvals, CE: Approved
• Approvals, FCC: FCC Part 15, Class B
• Used With: Spyder, Excel 600, 500, 100, 80 and Excel 10, 15 Series Controllers; Also used with the T7350 Thermostats
