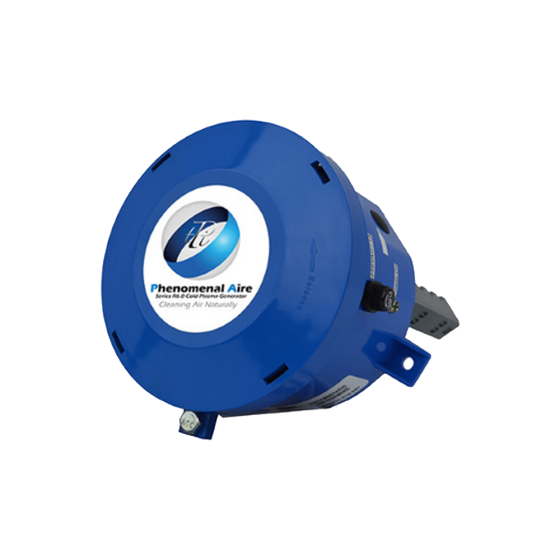

Series R 6.0 Cold Plasma Generator 24Vac, 6,000CFM (Residential)
Item
PA-R-6
APPLICATIONS
Ideal for residential air handlers, furnaces, heat pumps, package units, and splits. Rated for systems up to 6,000 CFM (15 tons).
FEATURES & BENEFITS
• ETL Listed
• Air Flow Capacity: 0 to 6000 CFM
• Area of Coil Face Coverage: 4' x 4'
• Input Voltage: 24Vac
• Pressure Drop: < 0.05" w.c.
• Power Consumption: 12VA
• Needlepoint Prove Length: 6"
• 60 Hertz
• Carbon Resin Electrode
• Temperature Range: -20 °F to 140 °F
• Ionization Generation: Needlepoint Bi-Polar
• Ion Output: 360 million ions/cc/sec per inch
• Ion Status: Green LED
• Humidity Range: 0-99%
• Power Head Dimensions: 5" Diameter x 3.5" High
| Electrical | |
|---|---|
| Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 6 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 8.000000 | Shipping Weight (lbs) | 6.000000 |
| Specification | |
|---|---|
| CFM | 6,000 |
