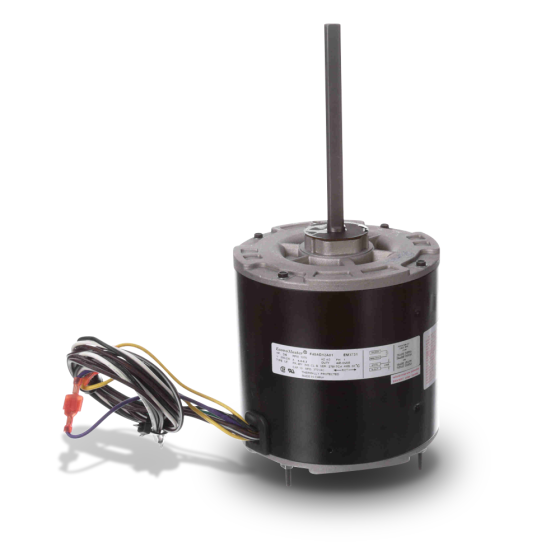

Century® EconoMaster® Condenser Fan Motor 3/4HP, 1075RPM, 208/230Vac, 5.3A, 10µF/370Vac, 1 Speed, 60 °C, (PSC)

Item
EM3731
  • California Prop 65

PRODUCT DETAILS

• Thermally Protected
• 36" Leads
• Extended Studs Lead End, Mounting Holes in Shell, Belly Band

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 3/4
• RPM: 1075
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 5.3
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48Y
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 60 °C
• Shaft Size: 0.50 x 6.0

Specification
Ambient Temperature 60° C
Bearing Type Ball
Cap Rating 10µF/370Vac
Motor Frame 48Y
Motor HP 3/4
Motor Type PSC
Mounting Type Thru Bolt/Mounting Holes/Belly Band
Number of Speeds 1
RPM 1075
Shaft Diameter 0.50
Electrical
Amps 5.3
FLA 5.3
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 18
Exterior Dimensions (D) (inches) 15.550000
Exterior Dimensions (W) (inches) 6.450000
Exterior Dimensions (H) (inches) 6.810000
Shipping Weight (lbs) 18.000000
