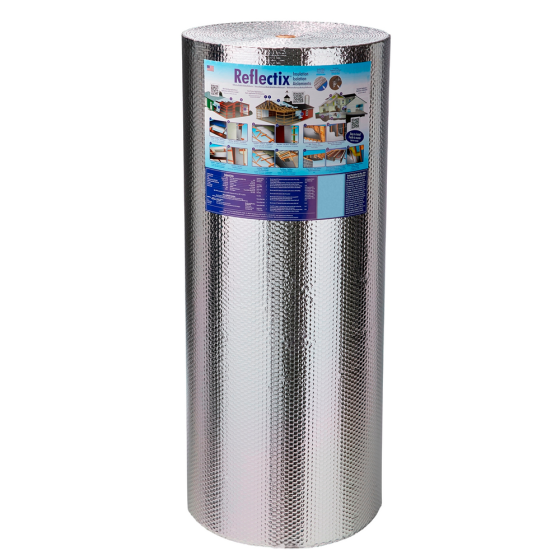

Reflectix® Double Bubble Duct Wrap 12 in. x 100 ft.

Item
HVBP12100
  • California Prop 65

APPLICATIONS

Reflectix® Duct Insulation is an alternative to other types of fibrous insulation products. Ease of handling and quick installation make Reflectix ® the first choice when selecting insulation for round or rectangular ductwork in HVAC systems.

FEATURES & BENEFITS

• Reflectix® Duct Insulation consists of two layers of highly reflective film (96% reflectivity) that are bonded to two tough layers of polyethylene. Two inner layers of insulating bubbles resist conductive heat flow while a center layer of polyethylene gives Reflectix ® high reliability and strength. The product has a tape running the length of the roll for easy identification by code officials. The tape identifies the manufacturer and ASTM Testing: Reflectix ® Duct Insulation ASTM E84, Class A / Class 1, ASTM C411 Passed
• Non-toxic / non-carcinogenic
• Not affected by moisture or humidity
• Fiber-free
• Does not promote nesting of birds, insects or rodents
• Resists growth of fungi, mold, mildew
• Does not require protective clothing or respirators to install
• Costs less to install
• Lowers heating and cooling costs year-round
• Lightweight and clean
• ISO 9001:2015 Certified Manufacturing Location
• Temperature Range: -30 0 to +180 0 F
• Nominal Thickness: 5/16 inch (.312)
• Weight: 0.771 oz./sq. ft.
• Flame Spread Index (ASTM E 84): Less than 25
• Smoke Developed Index (ASTM E 84): Less than 50
• Mounting Method (ASTM E 2599)
• Fire Rating: Class A/Class 1
• Linear Shrinkage: None
• Reflectance (IR): 96%
• Water Vapor Transmission (ASTM E 96): 0.02
• Puncture Resistance: 60 lb./in.
• Mold and Mildew: No Growth
• Emittance: 0.04
• Tensile Strength: 3.7 N/mm
• Pliability: No Cracking
• Hot Surface Performance: Passed (250 0 F)
• Note: Not for use in direct contact on surface temperatures that are 180 0 F or greater.

Specification
Thickness 5/16"
Length 100 ft.
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 10
Exterior Dimensions (D) (inches) 15.000000
Exterior Dimensions (W) (inches) 15.000000
Exterior Dimensions (H) (inches) 12.000000
Shipping Weight (lbs) 10.000000
