Refco Condensate Pump 6GPH, 100-240Vac

FEATURES

Quick and easy to install, highly versatile, exceptionally quiet, and the smallest of its kind on the market – this is the new condensate pump from the VAMP series. It combines innovative technology with practical benefits. Proven and interference-resistant optical sensor technology is paired with the reliable and silent operation of a diaphragm pump. In the development process, we focused on using as few components as possible to make installation and handling easy and fast for the user. The VAMP-F features an integrated reservoir and an optical level sensor, making it the smallest model on the market.

Quiet Operation
Thanks to advanced diaphragm pump technology and effective vibration dampening, the pump operates at less than 18 dB(A)

Easy and Quick Installation

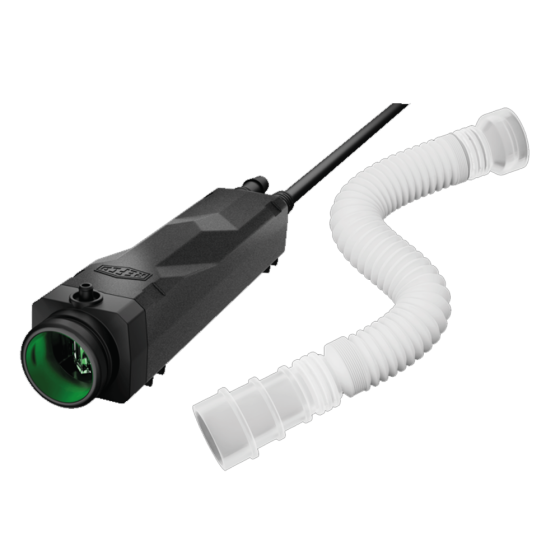

The adjustable hose serves as a reservoir replacement (with filter and adapter) for direct connection to the condensate tray

Minimal Space Requirement
Standing at just 1 inch tall, it fits even in the tightest spaces

Pump Capacity
Handles up to 6 gallons per hour

Lift Height
Capable of up to 50 ft

Versatile Applications
Suitable for wall-mounted units, ceiling units, and floor units

Integrated Switching Power Supply
Operates universally with input voltages ranging from 100-240 VAC

Optical Level Sensing Technology
Reliable operation ensured by proven optical sensors

Readily Available Accessories
All necessary accessories are quickly accessible

Swiss Quality Assembly

SPECIFICATIONS

• Max. Flow Rate: 6 GPH

• Max. Discharge Head: 50 ft

• Max. Horizontal Run: 246 ft at 0 ft head and 0 ft suction

• Noise Level: 18 dB(A)

• Type: Diaphragm type

• Tube Diameter: 1/4 ″

• Voltage: 100 - 240 VAC

• Frequency: 50Hz/60Hz

• Energy Consumption: 6 W

• Power Consumption Idle: 0.6 W

• Protection Class: II

• Alarm Relay: Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A

• Ingression Protection: IP44

• Operating Temperature Range: 37 °F – 104 °F

• Water Temperature Range: 37 °F – 104 °F

• Storage Temperature Range: -4 °F – 158 °F

• Packaging: Cardboard box

• Scope of Supply: Posable hose with filter. Installation cable. Anti-siphon valve. Vent tube. Cable ties. Quick guide.

• Material: Polyamide | FR-4

• Color: Black

• Standards: IEC 60335-1, IEC 60335-2-41, UL 778, CSA C22.2 #108

• RoHS Conformity: Yes
