Rectorseal 30A Fusible Disconnect with RSH-50 Surge Protector, 120/240Vac, 1 Phase, 10kA to 50kA

Item
96417
  • California Prop 65

FEATURES

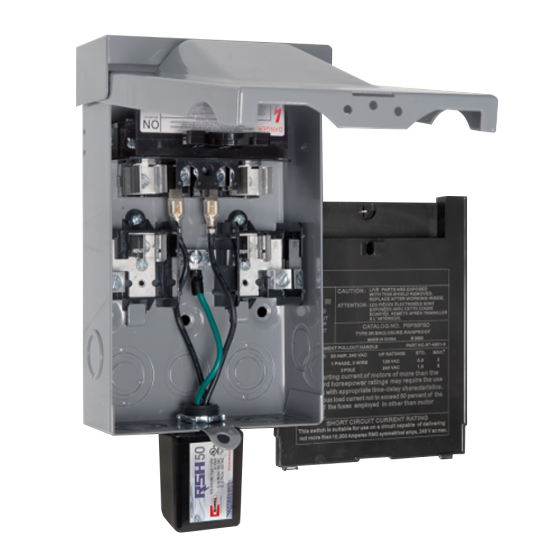

Disconnect Box with a pre-installed RSH-50 Surge Protector. Our RSH-50 is tabbed into the disconnect, to avoid any potential code violations with multiple wires being lugged in.


  • • Fused Disconnect Box
  • • Long-Lasting Gas Discharge Tube Technology
  • • TFMOV Technology
  • • Green LED Easily Indicates Protection
  • • Designed to protect all single phase, 120/240-V air conditioning, heat pumps and ductless mini-split systems (DMSS) from transient over-voltage and natural-cause surges.

    • SPECIFICATIONS

  • • Voltage: 120/240Vac
  • • Surge Protection
      • ○ 10kA Repetetive surge
      ○ 50kA Single surge
  • • 30 Amp Fused
    • Specifications
    Electrical
    Phase 1
    Voltage 120/240
    Safety Standards
    California Prop 65 Yes
    Specification
    Amp Rating 30
    Weights and Dimensions
    Operating Weight (lbs) 5
    Exterior Dimensions (D) (inches) 5.000000
    Exterior Dimensions (W) (inches) 8.000000
    Exterior Dimensions (H) (inches) 16.000000
    Shipping Weight (lbs) 5.000000
    Resources
    96417_PDS.pdf
