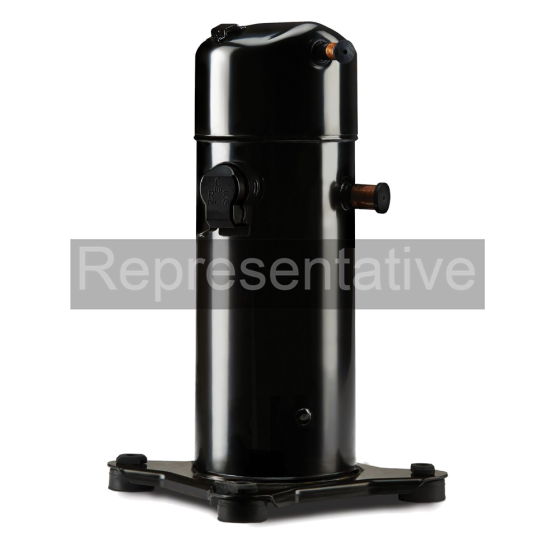

LG Hermetic Scroll Compressor R22, 62,000BTU, 208/230Vac, Three Phase
Item
SR061RBD
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 62,000
• Refrigerant: R22
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 17 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 61 to 65kBTU | Suction Line Height | 11.5" | Discharge Line Height | 15.9" | Discharge Line Size | 1/2" | Compressor Type | Scroll | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 82 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 10.500000 | Exterior Dimensions (H) (inches) | 22.000000 | Shipping Weight (lbs) | 82.000000 |
