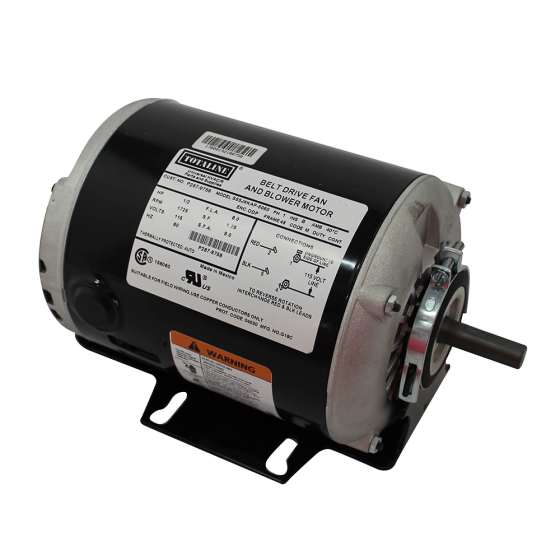

Belt Drive Blower Motor 1/2HP, 1725RPM, 115Vac, 7.9A

Item
P267-9758
  • California Prop 65

FEATURES & BENEFITS

• Motor Type: Split Phase
• H.P. (Max.): 1/2
• Voltage: 115/230Vac
• Speeds: 1
• Hz: 60
• Rotation: REV
• RPM Range: 1725
• NEMA Frame Size: 48
• Phase: Single
• FLA: 8.0
• Bearing: Ball
• Shaft Length Inches: 1-1/2
• Shaft Dia Inches: 1/2
• Ambient Deg C: 40
• Ins. Class: Class A
• Open drip-proof construction
• Reversible rotation by electrical reconnection
• Class A Insulation -1/6 thru 1/2 HP
• Class B Insulation - 3/4 thru 1 HP
• Automatic reset thermal protection

Specification
Ambient Temperature 40°C
Motor HP 1/2
Number of Speeds 1
RPM 1725
Electrical
Voltage 115/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 16.85
Exterior Dimensions (D) (inches) 7.500000
Exterior Dimensions (W) (inches) 13.200000
Exterior Dimensions (H) (inches) 8.400000
Shipping Weight (lbs) 16.850000
