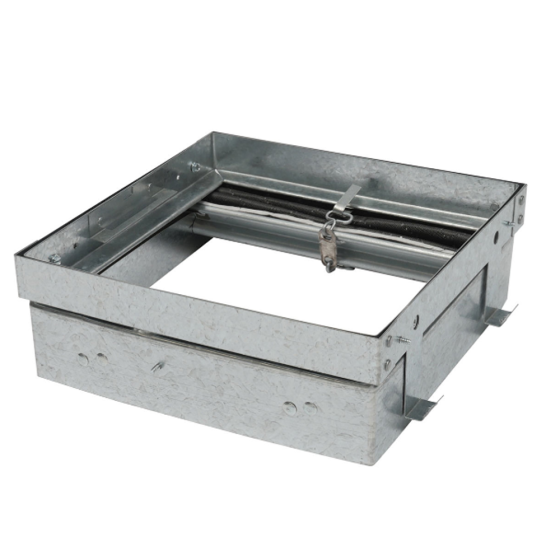

Radiation Damper 26-1/2" x 14-3/5" x 11-1/2"
Item
PC-RD05C5
APPLICATIONS
Panasonics folded ceramic curtain style damper meets both combustible and non-combustible UL assemblies. Supports two-stage construction: fan housing and damper sleeve during framing, and fan/motor/damper installation after finishes. Provides easy access to fan/motor/damper for hassle-free maintenance.
FEATURES & BENEFITS
• Folded ceramic curtain style damper meets both combustible and non-combustible UL assemblies
• Allows for versatile two-stage construction; during framing and after finishes
• Easy access to fan, motor and damper for maintenance
• UL approved for most Panasonic 10 1/4" 50 – 150 CFM fans, fan/lights and fans with motion sensor
• Galvanized steel frame with 165°F fusible link
| Specification | |
|---|---|
| Fitting Type | Dampers & Disks | Fitting Sub Type | Radiation Dampers |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 31 | Exterior Dimensions (D) (inches) | 27.000000 | Exterior Dimensions (W) (inches) | 12.000000 | Exterior Dimensions (H) (inches) | 15.000000 | Shipping Weight (lbs) | 31.000000 |
