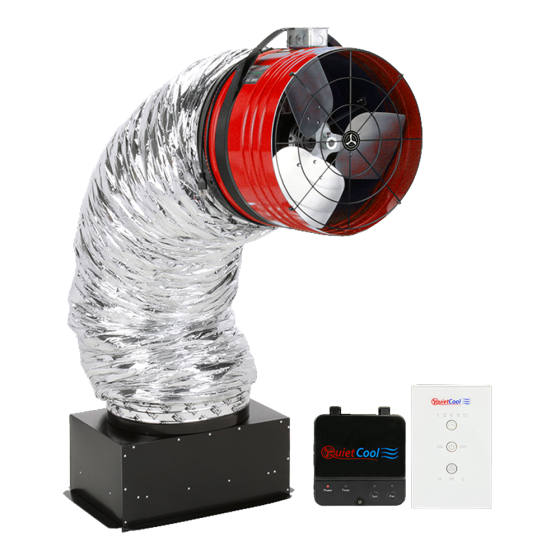

Our Trident Pro X Series is the powerful Whole House Fan that is ideal for any home in need of maximum airflow. With our patented design, robust airflow, reliable production, and Included Wireless RF Control you can experience supreme cooling. Now enhanced with the sleek, modern Glass RF Wireless Control, managing your home’s cooling has never been more convenient QuietCool Whole House Fans are the V in HVAC that can double the efficiency and life of your HVAC system.
SPECIFICATIONS
• Airflow: Hi: 2,490 CFM / Low: 1,934 CFM
• HVI-916 Airflow (for CA Title 24 New Construction): Hi: 1,800 CFM / Low: 1,370 CFM
• Recommended SQFT Coverage @ 2-3 CFM per SQFT: Covers 830 SQFT to 1,245 SQFT
• Energy Use: Hi: 244 Watts / Low: 198 Watts
• Amps: Hi: 2.46 / Low: 1.89
• Motor Voltage: 120 VAC, 60 Hz
• # of Speeds: 2
• dBA: Hi: 43.2 / Low: 37.4
• Minimum Attic Clearance: 34”
• Duct Diameter: 16”
• Duct Length: 6 feet
• Motor Head Diameter: 16 1/2”
• Motor Head Length: 13 1/2”
• Dampers: Barometric Pressurized R5 Dampers
• Controls: Included IT-36003 QuietCool Wireless RF Control Kit with Glass Wireless RF Switch
• Warranty: Limited Lifetime
• Framing: None Required
• Joist Cutting: None Required; fits 16” or 24” on center
• Minimum Suggested Attic Venting: 3.32 SQ FT net free area
