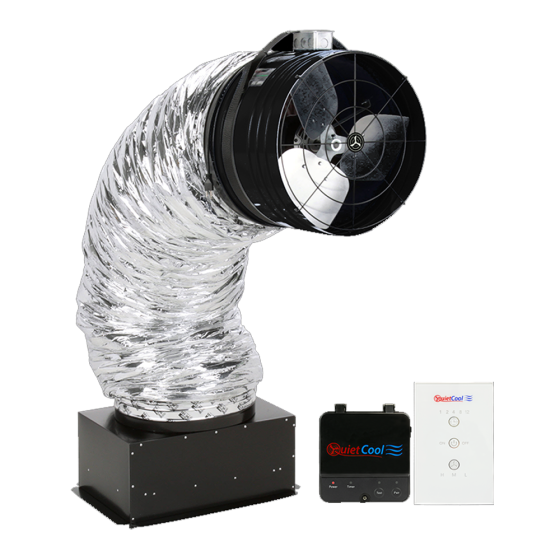

QuietCool® Stealth Pro 5.5X Whole House Fan with RF Controls 2,870 to 5,044CFM, 120Vac (1,681 to 2,522sq ft)
FEATURES Our Stealth Pro X Series is the efficient Whole House Fan that mastered low cost cooling with powerful results. With our sleek design, patented technology, reliable production, and Included Wireless RF Control you can utilize an ultra-energy efficient motor to keep your home cool and your money saved. Now enhanced with the sleek, modern Glass RF Wireless Control, managing your home’s cooling has never been more convenient. QuietCool Whole House Fans are the V in HVAC that can double the efficiency and life of your HVAC system.
SPECIFICATIONS • Airflow: Hi: 5,044 CFM / Med: 4,238 CFM / Low: 2,870 CFM • HVI-916 Airflow (for CA Title 24 New Construction): Hi: 3,750 CFM / Med: 3,070 CFM / Low: 2,010 CFM • Recommended SQFT Coverage @ 2-3 CFM per SQFT: Covers 1,681 SQFT to 2,522 SQFT • Energy Use: Hi: 490 Watts / Med: 268 Watts / Low: 88 Watts • Amps: Hi: 6.31 / Med: 3.67 / Low: 1.30 • Motor Voltage: 120 VAC, 60 Hz • # of Speeds: 3 • dBA: Hi: 50.7 / Med: 43.6 / Low: 35.6 • Minimum Attic Clearance: 38” • Duct Diameter: 20” • Duct Length: 9 feet • Motor Head Diameter: 20 1/2” • Motor Head Length: 13 1/2” • Dampers: Barometric Pressurized R5 Dampers • Controls: Included IT-36003 QuietCool Wireless RF Control Kit with Glass Wireless RF Switch • Warranty: Limited Lifetime • Framing: None Required • Joist Cutting: None Required; fits 16” or 24” on center • Minimum Suggested Attic Venting: 6.73 SQ FT net free area • Ceiling Rough Opening: 14 1/4” x 30 1/4” • Removable Grille Outside Dimension: 16” x 32” • Shipping Weight: 75 lbs. • Box Dimensions: 39” x 24” x 39” INCLUDES • QC STL PRO-5.5X Motorhead • Ceiling Grille • Cut-out Template • Window Locks • Damper Box • 6 Foot Duct • Accessory Bag • Wireless RF Control Kit
Safety Standards
California Prop 65
Yes
Weights and Dimensions
Operating Weight (lbs)
75
Exterior Dimensions (D) (inches)
39.000000
Exterior Dimensions (W) (inches)
39.000000
Exterior Dimensions (H) (inches)
24.000000
Shipping Weight (lbs)
75.000000
