DiversiTech® Quick-Sling® Stand (Furnace/Air Handler)
Item
QSTD1000
APPLICATIONS

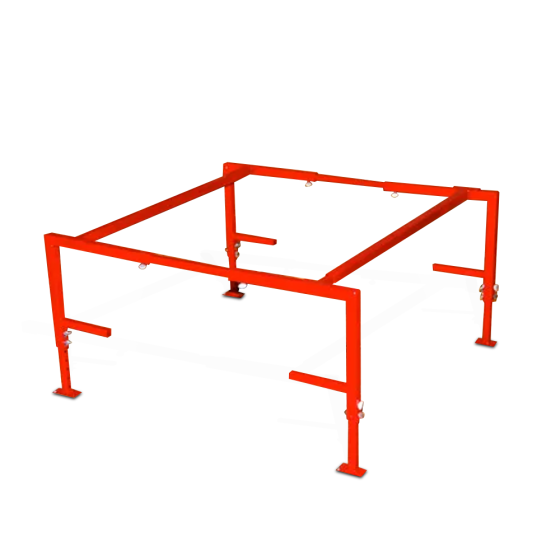

The Quick-Sling® QSTD1000 is a horizontal furnace or air handler equipment mounting stand. These stands are made of 14 gauge powder coated square tubing that cuts down on vibration and can hold up to 500 lbs. They are 3 dimensionally adjustable to make installation fast and easy. A secondary drain pan shelf is provided for convenient install & future maintenance (drain pan not included). Hardware and vibration isolation kit is included.
FEATURES & BENEFITS
• Adjustable in 3 Dimensions for flexibility
• Faster installation time
• 500 lbs Max Capacity
• Includes anti-vibration isolation pads
• Fabricated with drain pan post holders
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 27 | Exterior Dimensions (D) (inches) | 18.000000 | Exterior Dimensions (W) (inches) | 33.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 27.000000 |
