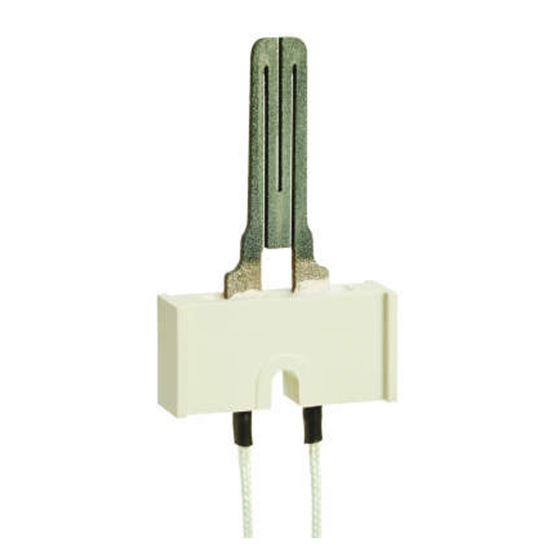

Silicon Carbide Hot Surface Igniter — 5.25 in. Lead Length

Item
Q4100C9056
  • California Prop 65

Q4100 Hot Surface Igniters are designed to provide a robust field service replacement igniter in gas fired appliances with 120 VAC silicon carbide hot surface igniters, creating one set of igniters to replace them all. The Q4100 line uses a 120 volt silicon carbide igniter design with long life and high resistance to damage or burnout in the appliance. Q4100 models include the silicon carbide igniter, bracket, screw, and wiring accessories to adapt the igniter to the specific application. Clear instructions and cross reference tables are provided to simplify selection of the proper igniter and easily install the replacement.

  • 120 volt silicon carbide design
  • Multiple mounting bracket styles: A, B, C, D, E
  • Lead lengths ranging from 4 in. to 19.125 in.
  • Replace popular versions of Robertshaw, White-Rodgers, and Norton silicon carbide igniters
Electrical
Voltage 120
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 2
Exterior Dimensions (D) (inches) 5.250000
Exterior Dimensions (W) (inches) 2.000000
Exterior Dimensions (H) (inches) 5.250000
Shipping Weight (lbs) 2.000000
