APPLICATIONS

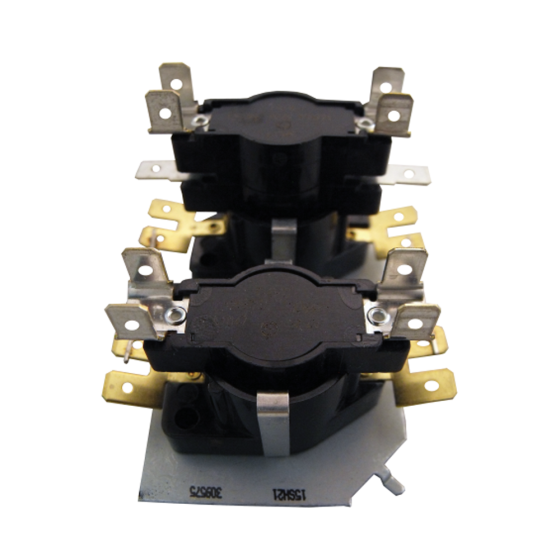

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has switches & turns on at 1-110 seconds, and off at 1-110 seconds.
FEATURES & BENEFITS
• On: 1 - 110 Seconds
• Off: 1 - 110 Seconds
• Timing: Contacts M1-M2 will turn on 1st and turn off last
• UL® and CSA® approved
• 24 volt control circuit
• Five second delay between all subsequent stages, unless they function together
CROSS REFERENCE
• Coleman® - 3120A357
• Zettler® - ZC24A34-5
• Interstate Electric I-9® - IES24A34-5
• White Rodgers® - 24A35-5 AND 24A34-54
• York® - 525-37327-000
• Klixon® - 51172-32
• Mars® - 33232 and 33832
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.18 | Exterior Dimensions (D) (inches) | 3.500000 | Exterior Dimensions (W) (inches) | 2.500000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 3.000000 |
