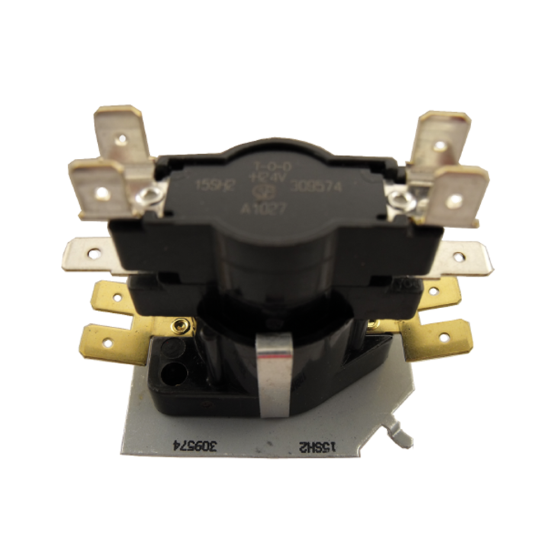

Supco® Electric Heater Sequencer

Item
Q104
  • California Prop 65

APPLICATIONS

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 2 switches & turns on at 30-90 seconds, and off at 1-30 seconds.

FEATURES & BENEFITS

• On: 30 - 90 Seconds
• Off: 1 - 30 Seconds
• UL® and CSA® approved
• 24 volt control circuit
• Five second delay between all subsequent stages, unless they function together

CROSS REFERENCE

• York® - 525-37325-000
• Carrier® / ICP® - HN67QC006
• Klixon® - 60000EO49
• Mars® - 33245 and 33845
• White Rodgers® - 24A34-4
• Zettler® - ZC24A34-4
• Interstate Electric I-9® - IES24A34-4

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3
Exterior Dimensions (D) (inches) 8.000000
Exterior Dimensions (W) (inches) 3.300000
Exterior Dimensions (H) (inches) 4.500000
Shipping Weight (lbs) 3.000000
