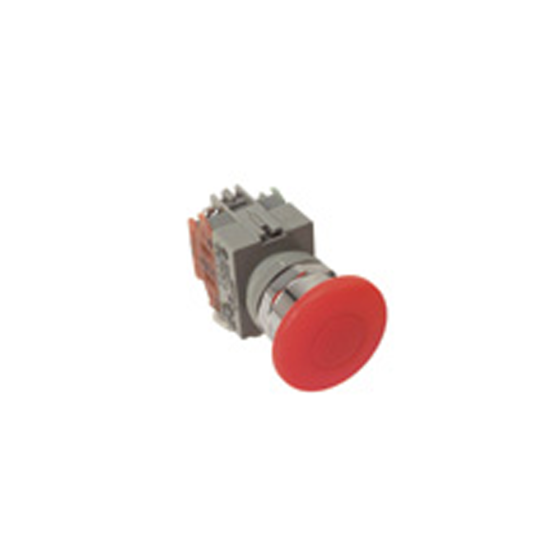

Mushroom Push Button Switch (Red)
Item
ABW410-R
APPLICATIONS
The ABW Series push button switches are for manual control of fans, pumps, compressors, or control circuits.
FEATURES & BENEFITS
• Contact Rating: 10A, 600 VAC/VDC max.; 5mA, 3 VAC/VDC minimum
• Contact Resistance: 50 mΩ maximum (initial value)
• Contact Material: Silver
• Electrical Life: 500,000 minimum operations
• Protection Rating: NEMA 1, 2, 3R, 4, 4X, 12, 13
• Insulation: 600V
• Applicable Wire Size:
• Minimum 1 x 22 AWG, Maximum 2 x 14 AWG or 1 x 12 AWG
• Mechanical Life: 500,000 minimum operations
• Operating Temperature: -13° to 122℉ (-25° to 50℃)
• Panel Thickness: Panel thickness adjustment ring, 0.04" to 0.24" (0.10 to 0.61 cm)
• Approvals: UL File #E68961; CSA File #LR48366, CE, RoHs
• Warranty: 1 year
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 0.100000 |
