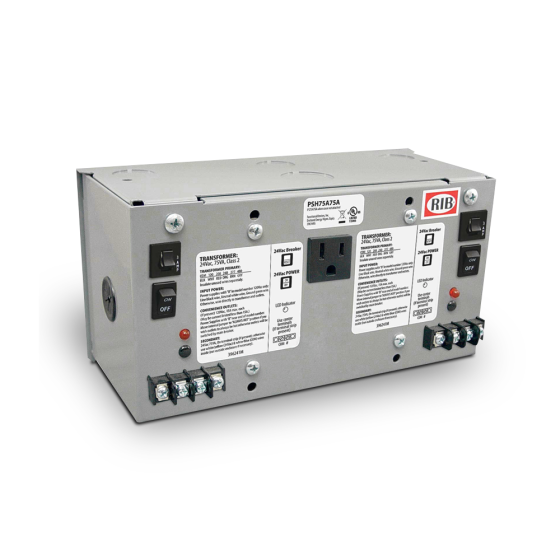

Enclosed AC Power Supply 120/208/240/277/480Vac Primary, 24Vac Secondary, 75Va
Item
PSH75A75A
FEATURES & BENEFITS
• Transformer: Two 75 VA Split-Bobbin.• Over Current Protection: Circuit Breaker.
• Frequency: 50/60 Hz.
• 24 Vac ON/OFF: On / Off Switch & Breaker .
• Main Breaker ON/OFF: Switch / Breaker (10 Amp)(Kills power to entire unit: Outlets, Aux. Output, & Transformer)*Total Combined Output 9A.
• Approvals: Class 2 (UL Approved UL5085-3), UL916, C-UL, CE, RoHS, Special .
• Dimensions: 4.500" x 8.625" x 4.500".
| Electrical | |
|---|---|
| Hertz | 60 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Va Rating | 75Va | Secondary Voltage | 24Vac | Primary Voltage | 120/208/240/277/480Vac |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 7 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 5.000000 | Shipping Weight (lbs) | 7.000000 |
