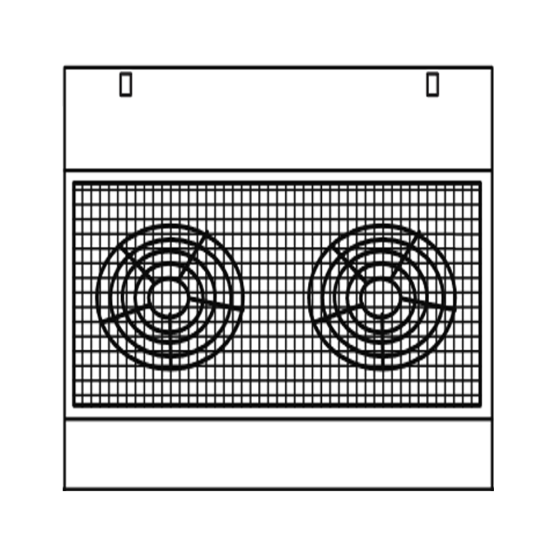

Carrier® Vertical Power Exhaust Accessory for Large Rooftop Units 460Vac, Three Phase
Item
CRPWREXH023A01
FEATURES
The accessory vertical power exhaust is used in conjunction with the vertical EconoMi$er IV, EconoMi$er X, or EonoMi$er2 accessories. For horizontal applications, this power exhaust accessory cannot be used. The horizontal power exhaust accessory must be used for horizontal applications.
INCLUDES
• 1 Power Exhaust Hood/Fan Assembly• 1 Low Voltage Wiring Harness with plug and 12-in. (305 mm) gray jumper wire
• 1 High Voltage Wiring Harness with plug
• 8 No. 10 x 3 / 4 in. (19 mm) Mounting Screws
• 1 Gasketing Roll
• 1 Sealing Angle The sealing angle was included beginning with unit serial numbers 3502Gxxxxx (21A-23A and 30A power exhaust only). For use with Hinged Panel units only.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 75 | Exterior Dimensions (D) (inches) | 42.000000 | Exterior Dimensions (W) (inches) | 28.000000 | Exterior Dimensions (H) (inches) | 30.000000 | Shipping Weight (lbs) | 75.000000 |
