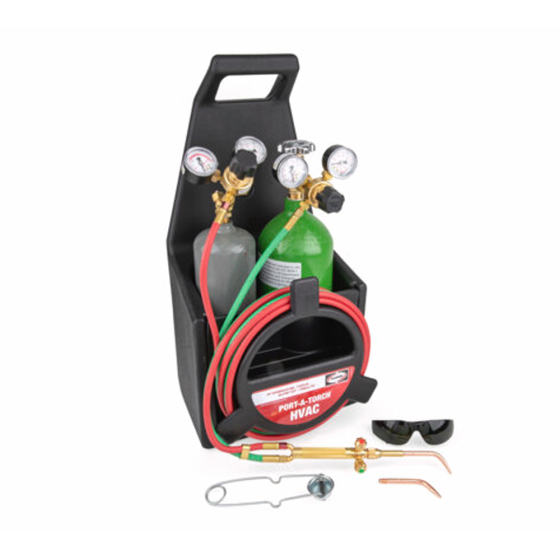

Harris® 15HV-601-200A Deluxe Port-A-Torch® Welding Kit

APPLICATIONS

The Port-A-Torch HVAC deluxe kit contains all the quality equipment needed for brazing, cutting and welding using acetylene. The kit includes Harris’ most economical regulators featuring one-piece encapsulated seats for longer service life, easy-to-read dual scale 50mm plastic gauges, large plastic adjusting knob and 7-year warranty. The solid brass torch handle is lightweight with front valves for more convenient adjustments while brazing or welding. It also has standard connections that are compatible with most brazing equipment. Also, included in the kit are an equal pressure mixer, brazing/welding tips, ANSI approved safety glasses, handheld ignitor, 3/16” x 12’ hose packaged in a rugged, molded plastic, hose-reel carrying tote. The kit is capable of cutting up to 4" (101.6mm) plate with optional tip(s) and acetylene cylinder; welding up to 1/16” (1.6mm) plate with supplied tips and welding up to 1/2” (12.7mm) plate with optional larger tip(s) and acetylene cylinder. All other components in the kit have a 1-year warranty.

FEATURES & BENEFITS

• Light-duty Port-A-Torch HVAC kit for brazing, cutting and welding projects
• Economical Model 601 regulators with easy-to-read, dual scale 50mm plastic gauges and large plastic adjusting knob
• The regulators have a one-piece encapsulated seat design with internal filter and PTFE seat to protect them from particulate contamination
• The Model 15-5HV solid brass torch handle is lightweight with front valves
• Model B-15-3HV "E" equal or positive pressure mixing system resists damage due to flashback

INCLUDES

• Model 601-15-200A Fuel Gas Regulator - 3000407
• Model 601-80-540A Oxygen Regulator - 3000412
• Model 15-5HV Torch Handle - 1401412
• Model B-15-3HV Mixer Assembly - 9004284
• Model 5090-1 Welding Tip - 1601700
• 5090-3 Welding Tip - 1601730
• Safety Glasses Shade 5 ANSI Z87.1 CE Weld - 4303629
• Handheld Ignitor - 9004486
• 3/16" x 12' Twin B&B "R" Grade Acetylene Hose - 4300155
• Port-A-Torch Hose Reel Black Carrying Tote - 8855033
• Trilingual Kit Manual - 9505643
