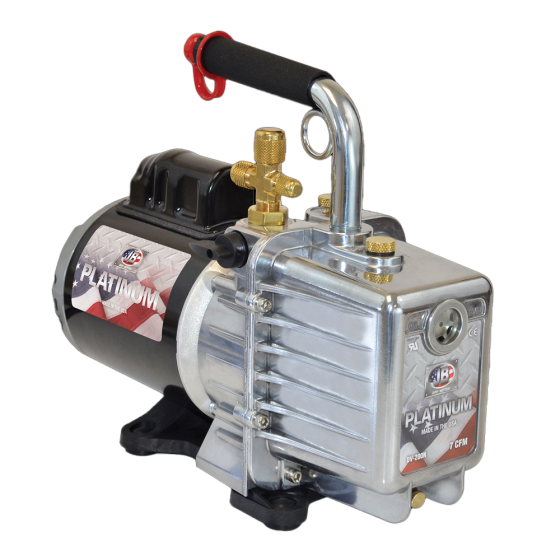

PLATINUM® Vacuum Pump 1/2HP 7CFM 115v

Item
DV-200N
  • California Prop 65

JB Industries’ PLATINUM® series vacuum pump is the best pump in the industry. Designed for the serious air conditioning and refrigeration technician, the PLATINUM® vacuum pump features a gas ballast and blank off valve. American made and subjected to JB’s rigorous performance standards, the PLATINUM® Series is the top of the line for both quality and durability.

Backed by an unprecedented 24 month over-the-counter warranty, there is no better pump on the market. Because each PLATINUM® pump is made at our facility in Aurora, Illinois, quality and dependability are woven in with hard working American pride. Completely field repairable, our PLATINUM® series is designed to last.

DV-200N FEATURES

Platinum 7 CFM (200 l/m) vacuum pump

  • 1/2 HP, 1725/1425 RPM capacitor start motor with thermal overload protection
  • 1/2” x 1/4" x 3/8” intake port
  • Voltage 115 Hertz 60
  • Standard US 110 Volt plug
  • 21 ounce (680 cc) oil capacity
  • Gas ballast increases and keeps oil cleaner
  • 2 stage direct drive to achieve deep 15 micron vacuum
  • Check valve prevents oil back flow during power failure
  • Low profile rocker switch
  • Lift ring to hoist
  • Tethered safety cap prevents oil spills during transport
  • 1/2" NPT break resistant handle encompasses exhaust
  • Lighter weight finned aluminum housing reduces heat during operation
  • Well-protected drain valve sealed with O-ring to prevent leaks
  • All metal construction including all brass fittings
  • Completely field repairable
  • UL Recognized
  • Made in the USA
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 32
Exterior Dimensions (D) (inches) 18.000000
Exterior Dimensions (W) (inches) 14.000000
Exterior Dimensions (H) (inches) 10.000000
Shipping Weight (lbs) 32.000000
