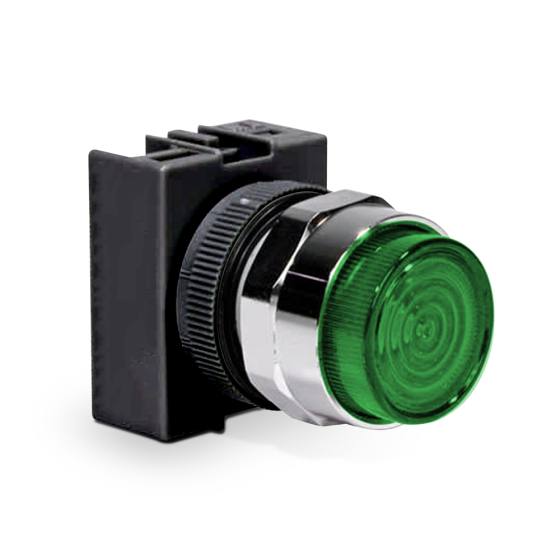

TW Series 22mm NEMA Pilot Light 24V (Round Flat - Green)
Item
APW199D-G-24
APPLICATIONS
The APW199D-G-24 Tw Series Pilot Light is for use on a flat, smooth surface of a NEMA type 4 or 13 Enclosure.
FEATURES & BENEFITS
• Corrosion resistant octagonal chrome plated locking bezel,
• Snap on 10A contacts,
• Modular construction for maximum flexibility,
• NEMA 4X and IP65 watertight/oiltight panel sealing,
• Available assembled or as sub-components,
• UL Listed, CSA Certified, TUV Approved, and CE Marked
• 24 Volt ac/dc
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 0.500000 |
