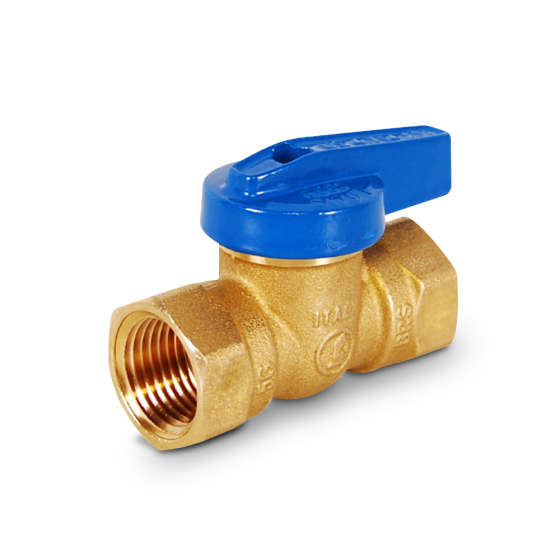

Patented one-piece forged brass body eliminates the possibility of seam leaks common to two-piece body designs*.Ideal for all residential and commercial gas installations.Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low- or moderate-pressure gas applications.Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks.The 175 psi pressure rating permits high-pressure air tests, without the grease-seal blowout common to plug-type gas cocks.Available in eight different configurations, to accommodate all gas connection types.
FEATURES & BENEFITS
• Cold working pressure (CWP): 175 psi.• Saturated steam (WSP): Not suitable for steam service.
| Specification | |
|---|---|
| Fitting Size | 1/2" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.339 | Exterior Dimensions (D) (inches) | 0.776000 | Exterior Dimensions (W) (inches) | 0.417000 | Exterior Dimensions (H) (inches) | 0.776000 | Shipping Weight (lbs) | 3.000000 |
