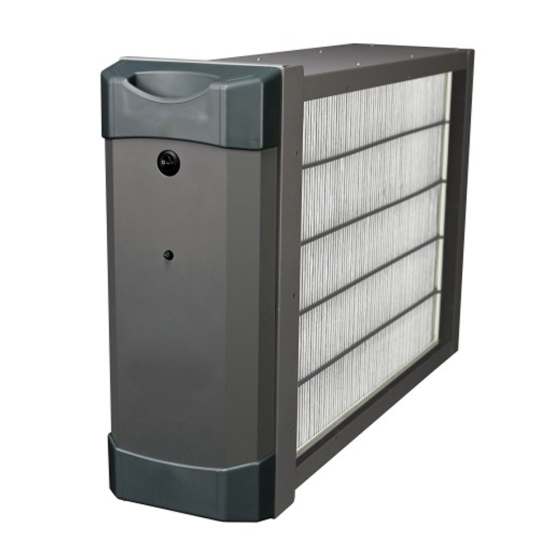

Electronic Germicidal Air Purifier 115/208/230Vac, 16" x 20", 1,200CFM, (MERV 13)

Item
PGAPAXX1620
  • California Prop 65

APPLICATIONS

The PGAPA Air Purifier is designed for use in the return air duct of a forced air heating, cooling, and ventilation system. It combines superior filtration efficiency, MERV 13, with pathogen-killing technology to deliver maximum air purification. The PGAPA Air Purifier is designed to require minimal maintenance. Maintenance is limited to the replacement of the air purification cartridge and inspection/brush cleaning of the ionization array. Frequency of air purifier cartridge replacement and cleaning of the ionization array may vary depending on ductwork design and local environmental conditions.

PRODUCT DETAILS

• High efficiency MERV 13.
• 96% germicidal/deactivation of human influenza virus, common cold virus and streptococcus bacteria.
• Virtually no cleaning required. Simply change purifier cartridge periodically.
• Five distinct cabinet sizes help to ensure a perfect fit to the bottom and side of most fan coils and furnaces. Includes power cords.
• Unit can be installed in a horizontal or vertical position, which makes it equally adaptable to horizontal, downflow, or standard upflow applications.
• Power supply is a highly reliable, dual voltage compatible, state-of-the-art, solid-state device.
• Heavy-gauge steel cabinet supports up to 400lb when installed beneath a fan coil.
• Agency Listed—Model PGAP Air Purifier is CSA (Canada and US) listed.
• Maximum Airflow (CFM): 1200
Replacement Media: PGAPXCAR1620-A01, PGAPXCAR1620-A02

Electrical
Voltage 115/208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 30
Exterior Dimensions (D) (inches) 24.680000
Exterior Dimensions (W) (inches) 7.250000
Exterior Dimensions (H) (inches) 18.480000
Shipping Weight (lbs) 55.000000
Specification
Filter Size 16" x 20"
MERV Rating MERV 13
CFM 1,200
