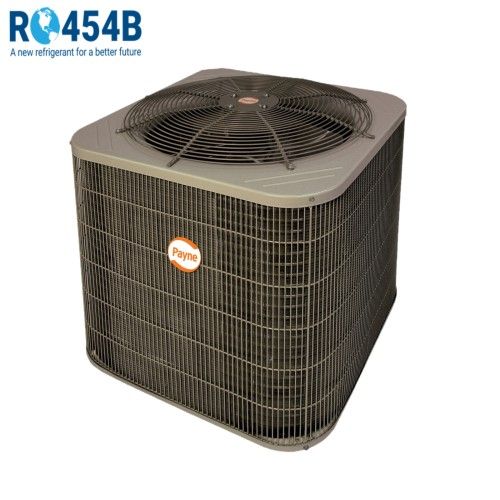

Payne R454B, Two Stage, Heat Pump Condenser, 208/1
This unit has been designed utilizing non-ozone depleting and low global warming potential R-454B refrigerant. Heat pumps with R-454B refrigerant provide a collection of features unmatched by any other family of equipment.
NOTE: Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
Industry leading Features / Benefits
Efficiency
• Up to 18.5 SEER2 / Up to 14 EER2 / Up to 8.5 HSPF2
• Indoor air quality accessories available
Sound
• Sound level as low as 67 dBA
Comfort
• System supports Thermidistat or standard 2-stage thermostat controls
Reliability
• Non-ozone depleting and low global warming potential R-454Brefrigerant
• Front-seating service valves
• 2-stage scroll compressor
• Internal pressure relief valve
• Internal thermal overload
• Loss of charge switch
• Filter drier
• Balanced refrigeration system for maximum reliability
Durability
• Protection Package: Solid, durable sheet metal construction
• Pre-painted cabinet finish over galvanized steel
Applications
• Long-line - up to 250 feet (76.2 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser (See Long Line Guide for more information.)
• Low ambient cooling (down to 0°F / -17.8°C ) with approved low ambient accessory kits.
Limited Warranty
• 5-year parts limited warranty (including compressor and coil)
– 10-year parts limited warranty (including compressor and coil) with timely registration*.
Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
* Applies to original purchaser/homeowner and not available to subsequent owners except in jurisdictions where applicable laws dictate otherwise.
See warranty certificate for complete details and restrictions.
