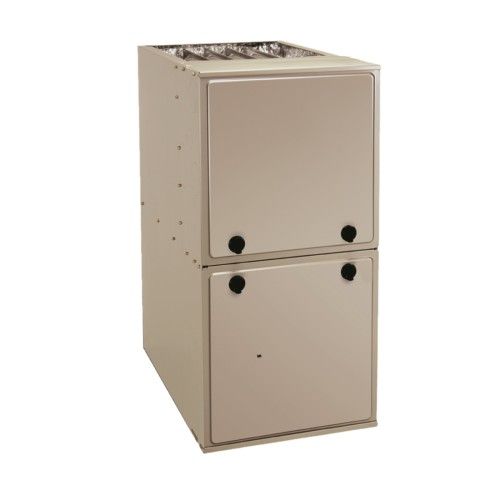

Payne 92% AFUE, Condensing Gas Furnace, Single Stage, 18 Speed ECM

Grouped product items
Product Name
Payne Multipoise Furnace, 92% AFUE, 40,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: PG92MSAA36040A
Payne Multipoise Furnace, 92% AFUE, 80,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: PG92MSAA60080C
Payne Multipoise Furnace, 92% AFUE, 60,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: PG92MSAA42060B
Payne Multipoise Furnace, 92% AFUE, 40,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: PG92MSAA36040B
Payne Multipoise Furnace, 92% AFUE, 80,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: PG92MSAA48080B
Payne Multipoise Furnace, 92% AFUE, 60,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: PG92MSAA36060A
Payne Multipoise Furnace, 92% AFUE, 100,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: PG92MSAA60100C
Payne Multipoise Furnace, 92% AFUE, 120,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: PG92MSAA60120D

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The PG92MSAA Multipoise 92 Condensing Gas Furnace featuressingle-stage gas valve and ECM blower motor. This furnace provides electrical efficiency with a fixed-speeds, constant torque (MCT) ECM blower motor. With an Annual Fuel Utilization Efficiency (AFUE) of 92.1% AFUE, the single-stage gas furnace provides added savings over standard, non-condensing gas furnaces. Improved serviceability with the 3 digit status display and NFC enabled board allowing setup via the service tech app. This Gas Furnace features 4-way multipoise installation flexibility, and is available in eight model sizes. The PG92MSAA can be vented for direct vent/two-pipe, ventilated
combustion air, or single-pipe applications. All sizes are design certified in Canada. All sizes are design certified for use in Manufactured Housing (Mobile Home) applications when used with factory-approved MH accessory kit

PERFORMANCE
• Multi 18-speed, constant torque (MCT) ECM blower motor for electrically efficient operation all year long in heating, cooling and continuous fan operation.
• Single-speed inducer motor, and single-stage gas valve.
• Silicon Nitride PowerHeat™ Robust Hot Surface Igniter.
• Adjustable blower speed for heating and cooling.
• Enhanced diagnostics with easy to read 3 digit display for faults and status
• Aluminized-steel primary heat exchanger.
• Stainless-steel condensing secondary heat exchanger.
INSTALLATION FLEXIBILITY
• 4-way multipoise design for upflow, downflow or horizontal installation, with unique vent elbow for 12 different venting options, including optional venting through-the-cabinet downflow venting capability.
• On-board NFC antenna makes setup a tap away when using the Carrier service technician app
• Factory-configured ready for upflow applications.
• Ideal height 35” (889 mm) cabinet: short enough for taller coils, but still allows enough room for service.
• Direct-vent/sealed combustion, single-pipe venting or ventilated combustion air.
APPLICATIONS
• Approved for Twinning applications with accessory kit (060M17--14, 080M17--16, 080M21--20, 100M21--20, 120M24--20 models, only).
• Approved for Manufactured Housing/Mobile Home applications with MH accessory kit.
• Convertible to propane with gas conversion accessory kit.
CERTIFICATIONS
• All sizes meet ENERGY STAR® South regional standards.
• Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with ASHRAE standard 193.
• All sizes can be installed in California air quality management districts with a 40 ng/J NOx emissions limit
