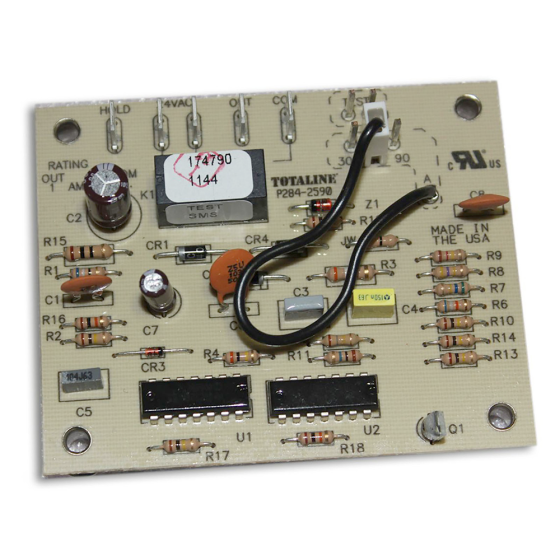

Totaline® Defrost Control Board
Item
P284-2590
FEATURES & BENEFITS
• Direct replacement for OEM type 621
• Low cost, time/temperature defrost.
• 24 VAC operation (18-30 VAC).
• 10 min. defrost interval. Pin-selectable interval times (30/60/90).
• Test pins reduce test time by 256x.
• HOLD input accumulates actual compressor run times.
• Sensor input for defrost terminate.
• Conformally coated.
• Voltage: 18-30 VAC 50/60 Hz
• Relay: Output
• Form: SPDT
• n.o.: 2 amps
• Defrost: 10min. fixed
• Interval times: Pin selectable 30/60/90 min.
REPLACES
• Amana - C6431001
• ARCO - 343214
• Avion - DFT100
• Coleman - 30130B3741
• ICM - DFOS
• Intertherm - 6208800
• Janitrol - B12260-06
• Lennox - 66G950
• Ranco - DT2-1000
• Rheem/Ruud - 47-21776-02-00
• Snyder General - 1052757, 1395-329
• Weatherking - 840-5548
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 8.000000 | Shipping Weight (lbs) | 1.000000 |
