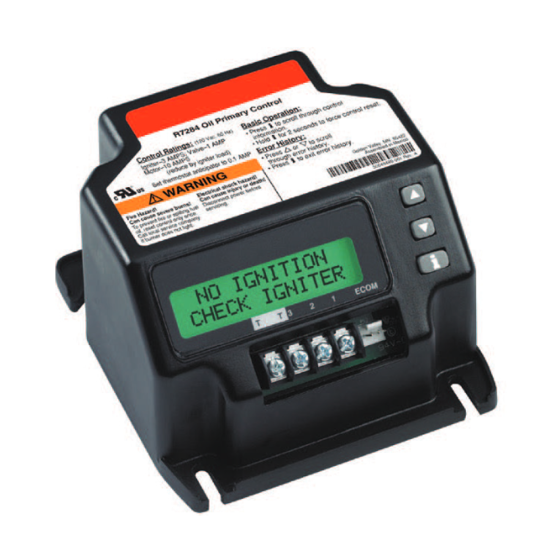

Universal electronic oil primary with programmable parameters and LCD display
APPLICATIONS
The R7284 oil primary is a digital, universal primary control, engineered to address the most common industry needs. The R7284U parameters are user defined and provides detailed actionable diagnostics.
FEATURES & BENEFITS
• A single part number for nearly all applications helps reduce inventory cost
• 16 character two line tri-lingual display provides simple programming and diagnostics on select models
• Enunciation of status and faults via LED or display
• No additional tool to purchase to take advantage of all control features
• Models with LEDs monitor igniter and cad cell
• Models with display monitor igniter and cad cell, and alerts technician as to exact cause of lockout
• Error history and baseline readings provide system performance and trends on models with display
• EnviraCOM™ enabled for remote access via EnviraLINK™
• Non volatile memory for settings and diagnostics
• Extensive, actionable diagnostics (display models only)
• History detailing last 10 events (display models only)
• Continuous state and CAD cell readings (display models only)
• Temperature Range (F): -40 F to +147 F
• Temperature Range (C): -40 C to +64 C
• Mounting: Junction box on main burner
• Approvals, Underwriters Laboratories Inc.: UL and cUL Component Recognized
• Electrical Connections: Burner motor, oil valve, ignition, cad cell, limit, thermostat, alarm
• Ignition Type: Interrupted and Intermittent
• Display: 2 Line LCD display
• Timing, Safety Switch: Settable 15, 30 or 45 sec.
• Electrical Ratings, Contacts (full load): 10A @ 120 Vac; 3.7 a @ 240 Vac
• Electrical Ratings, Contacts (locked rotor): 60A @ 120 Vac; 22.2 A @ 240 Vac
SUPERCEDES FROM
• R7184B1024
• R7184B1016
• 7456U
• R7184B1032
• R7184U1004
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 5.5 | Exterior Dimensions (D) (inches) | 7.500000 | Exterior Dimensions (W) (inches) | 1.530000 | Exterior Dimensions (H) (inches) | 4.500000 | Shipping Weight (lbs) | 5.500000 |
