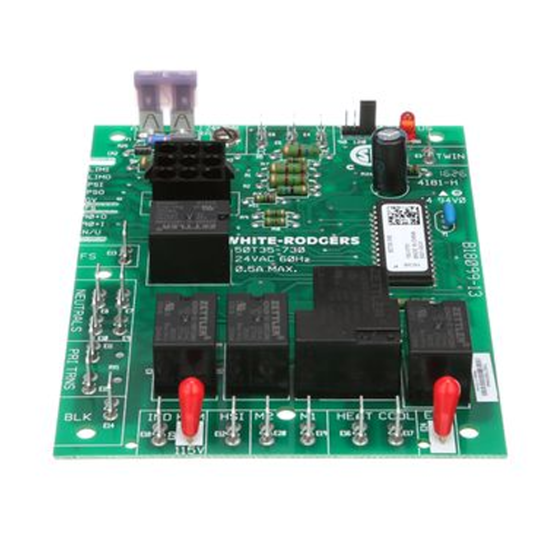

Goodman Direct Replacement Integrated Furnace Control
Item
50T35-743
FEATURES & BENEFITS
• Direct OEM replacements designed for high volume major brand controls.
• Models include PSC, Variable Speed and ECMx motor control.
• Diagnostic LED indicators streamline installation and system troubleshooting.
• 120V air cleaner output and 120V humidifier output up to 1 Amp max.
• Factory standard safety timings and adjustable fan delay options.
• Replaceable automotive style fuse.
• Stages: Single Stage
• Ignition Type: 14.5 FLA - 25.0 LRA @ 120 Vac
• Ignitor Voltage: 120 Vac
• Inducer Motor/Blower Motor: PSC/PSC
• Blower Motor: Speed Taps: Heat, Cool
• Thermostat Inputs: R, G, W
• Accessories: Includes Wiring Accessories
• Twinning: Yes
• Communicating System: No
• Mounting Options: Standoff
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.55 | Exterior Dimensions (D) (inches) | 4.750000 | Exterior Dimensions (W) (inches) | 5.750000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 2.000000 |
