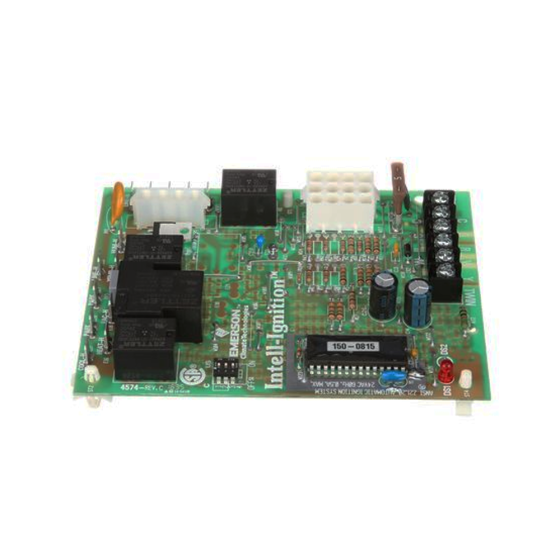

Trane Direct Replacement Integrated Furnace Control
Item
50A65-5165
FEATURES & BENEFITS
• Direct OEM replacements designed for high volume major brand controls.
• Models include PSC, Variable Speed and ECMx motor control.
• Diagnostic LED indicators streamline installation and system troubleshooting.
• 120V air cleaner output and 120V humidifier output up to 1 Amp max.
• Factory standard safety timings and adjustable fan delay options.
• Replaceable automotive style fuse.
• Stages: Single Stage
• Ignition Type: 14.5 FLA - 25.0 LRA @ 120 Vac
• Ignitor Voltage: 80 Vac only
• Inducer Motor/Blower Motor: PSC/PSC
• Blower Motor: Speed Taps: Heat, Cool
• Thermostat Inputs: R, C, W, Y G
• Accessories: None
• Twinning: Yes
• Communicating System: No
• Mounting Options: Standoff
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.6 | Exterior Dimensions (D) (inches) | 5.100000 | Exterior Dimensions (W) (inches) | 2.500000 | Exterior Dimensions (H) (inches) | 7.750000 | Shipping Weight (lbs) | 1.500000 |
