APPLICATIONS

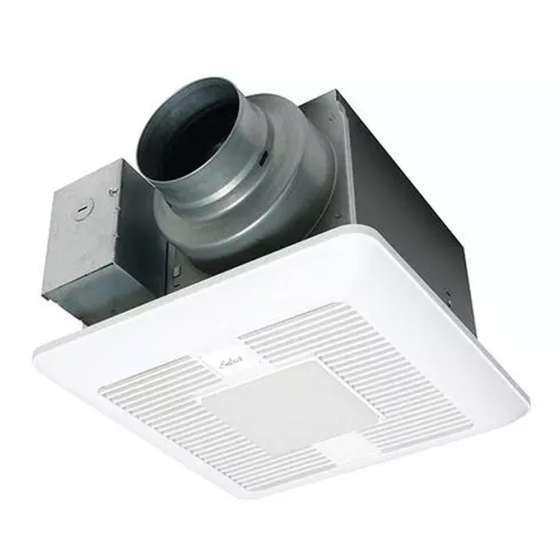

The Panasonic WhisperGreen® Select™ FV-0511VKSL2 ENERGY STAR® Certified Ventilation Fan is our whole house IAQ solution with enhancements. First, our redesigned elegant grille incorporates a 10W dimmable LED chip panel with 1W LED night light for energy efficient illumination. Another new feature is our single-hinged Flex-Z Fast™ bracket for more flexible and easy installation. Other enhancements include an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.
FEATURES & BENEFITS
• Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage.
• Pick-A-Flow Airflow Selector; features a built-in speed selector (50-80-110 CFM model) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks.
• Elegant grille with integrated 10W dimmable LED chip panel with 1W LED night light; JA-8 compliant for CA Title 24.
• Environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design
• Improved Flex-Z Fast™; single-hinge bracket with added flexibility, fast and easy installation
• Advanced Features: Pick-A-Flow™ Airflow Selector, ECM motor with SmartFlow technology, Multi-Speed with Time Delay, Dimmable LED Light
• Air Volume Supply (CFM): @0.1= 30,40,50,60,70,80,90,100,110 @0.25= 30,41,50,60,70,80,90,101,110 @0.375= 30,40,50,60,69,78,90,99,103
• Noise (Sones): @0.1"SP (30,40,50,60,70,80,90,100 CFM) = 0.3 , 0.4 @ 110 CFM @0.25"SP(30,41,50,60,70,80,90,101,110 CFM) = 0.4, 0.4, 0.4, 0.4, 0.5, 0.5, 0.6, 0.8, 0.8
• Power Consumption (Watts): 30 CFM=2.5, 40=2.7, 50=3.2, 60=3.7, 70=4.6, 80=5.3, 90=6.7, 100=8.2, 110=10.5
• Energy Efficiency (CFM/Watt): 30 CFM=12.0, 40=14.8, 50=15.7, 60=16.2, 70=15.8, 80=15.3, 90=13.5, 100=12.2, 110=10.5
• Current (Amps): 30 CFM=0.04, 40=0.04, 50=0.04, 60=0.05, 70=0.06, 80=0.06, 90=0.08, 100=0.09, 110=0.11
• Power Rating (Vac/Hz): 120/60
• Motor Type (AC/DC): DC (ECM)
• ENERGY STAR® Certified: Yes
• Other Approved Codes and Standards: ASHRAE 62.2, LEED, CA T-24, CALGreen
• Duct Diameter: 4 or 6 inch
• Mounting Options: Horizontal
• Ventilation Design Approach: Bathroom Ventilation Fan
• Warranty: 6 years ECM Motor, 3 years all other parts
• Radiation Damper Available: Yes, PC-RD05C5
• Master Carton Gross Weight (lbs.): 12.50 (1 unit)
• Master Carton Dimensions (HxWxD): 11.85 x 14.17 x 16.73
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
Motor/Blower
• Enclosed brushless ECM smart motor technology rated for continuous operation
• Adjustable ventilation rates at 50 – 80 – 110 CFM
• Power rating of 120 volts and 60 Hz
• UL and cUL listed for tub/shower enclosure when GFCI protected
• Motor equipped with thermal cutoff fuse
• Removable permanently lubricated plug-in motor
Housing
• Environmentally friendly 26 gauge housing using Zinc-Aluminum-Magnesium (ZAM) coating
• Integrated dual 4" or 6" diameter duct adapter
• Built-in damper reduces back draft and helps with blower door testing
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing
• Suitable for installation in ceilings insulated up to R60
• Articulating and expandable installation bracket up to 24"
Grille
• Attractive design using Poly Pro material
• Attaches directly to housing with torsion springs
• Includes a motion sensor cap for use as a cover when the motion sensor Plug ’n Play™ module has not been selected
Warranty
• ECM Motor: 6 Years from original purchase date
• LED Panel: 5 Years from original purchase date
• ALL Parts: 3 Years from original purchase date
