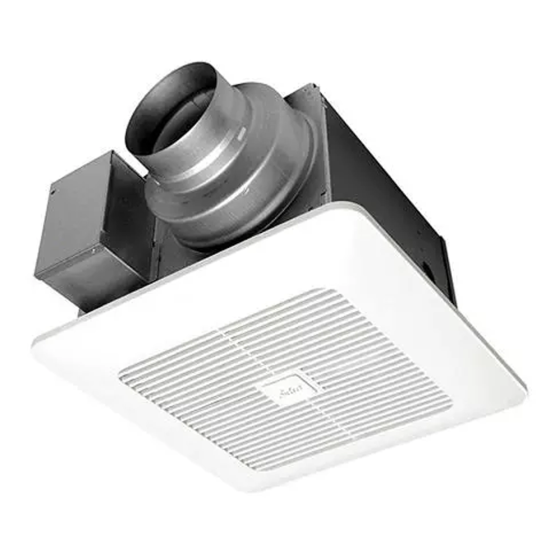

The Panasonic WhisperGreen® Select™ FV-0511VK2 ENERGY STAR® Certified Ventilation Fan is our whole house IAQ solution with enhancements that will provide greater value to our customers. First, our improved single-hinged Flex-Z Fast™ bracket for more flexible, fast and easy installation. Other enhancements include a new elegant grille design, an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.
FEATURES & BENEFITS
• Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage • Pick-A-Flow Airflow Selector; features a built-in speed selector (50-80-110 CFM model) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks • Environmentally friendly 26-gauge Zinc-Aluminum-Magnesium (ZAM) housing design • Improved Flex-Z Fast™; single-hinge bracket with added flexibility, fast and easy • Elegant grille design complements the aesthetics of any room • Advanced Features: Pick-A-Flow™ Airflow Selector, ECM motor with SmartFlow technology • Air Volume Supply (CFM): @0.1= 50, 80, 110 @0.25= 51, 80, 110 @0.375= 51, 79, 108 • Noise (Sones): @0.1"SP (50,80,110 CFM) = 0.3 @0.25"SP(51,80,110 CFM) = 0.4, 0.5, 0.8 • Power Consumption (Watts): 50 CFM=3.1, 80=5.1, 110=9.9 • Energy Efficiency (CFM/Watt): 50 CFM=16.2, 80=15.7, 110=11.1 • Current (Amps): 50 CFM=0.04, 80=0.06, 110=0.10 • Power Rating (Vac/Hz): 120/60 • Motor Type (AC/DC): DC (ECM) • ENERGY STAR® Certified: Yes • Other Approved Codes and Standards: ASHRAE 62.2, LEED, CA T-24, CALGreen • Duct Diameter: 4 inch • Mounting Options: Horizontal • Warranty: 6 years ECM Motor, 3 years all other parts • Radiation Damper Available: Yes, PC-RD05C5 • UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
Motor/Blower • Enclosed brushless ECM smart motor technology rated for continuous operation • Adjustable ventilation rates at 50 – 80 – 110 CFM • Power rating of 120 volts and 60 Hz • UL and cUL listed for tub/shower enclosure when GFCI protected • Motor equipped with thermal cutoff fuse • Removable permanently lubricated plug-in motor
Housing • Environmentally friendly 26 gauge housing using Zinc-Aluminum-Magnesium (ZAM) coating • Integrated dual 4" or 6" diameter duct adapter • Built-in damper reduces back draft and helps with blower door testing • Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing • Suitable for installation in ceilings insulated up to R60 • Articulating and expandable installation bracket up to 24"
Grille • Attractive design using Poly Pro material • Attaches directly to housing with torsion springs • Includes a motion sensor cap for use as a cover when motion sensor Plug ’n Play ™ module has not been selected
Warranty • ECM Motor: 6 Years from original purchase date • ALL Parts: 3 Years from original purchase date
