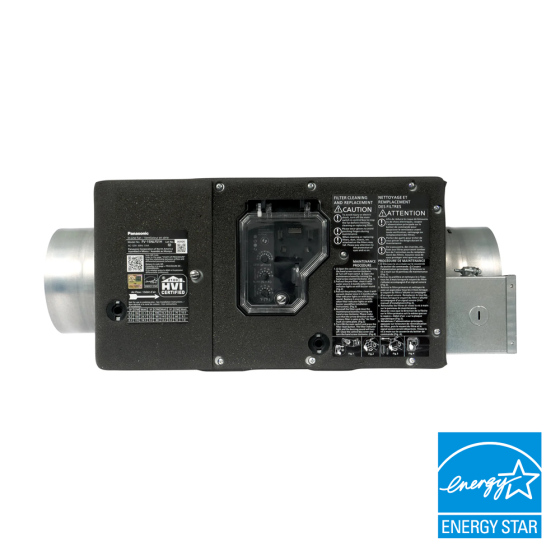

Panasonic WhisperFresh® Select Fresh Air Supply Fan 6 in. Round Duct, 50-150CFM, 120Vac (Hardwired)

FEATURES

The WhisperFresh® Select fan is the ultimate supply air fan. Its built-in, Pick-A-Flow® airflow selector switch allows you to select your required airflow (50-150 CFM). It features an ECM Motor with SmartFlow® technology for CFM output to achieve precision whole-house supply ventilation. WhisperFresh® Select supply air fans can be used to comply with the latest codes and standards including ASHRAE 62.2, LEED and CA Title 24.

• Customizable fresh air supply fan featuring Pick-A-Flow® technology – one fan, with 9 CFM settings. You choose the CFM (50-60-70-80-90-100-110-130-150)

• Intelligent ECM motor with SmartFlow™ technology provides optimum CFM output for precision whole house supply ventilation

• Operates as a stand-alone, filtered supply, fresh air solution to meet ASHRAE 62.2 requirements for make-up/supply air

• Capable of communicating with Panasonic’s acclaimed WhisperGreen® Select fan portfolio to create a balanced ventilation solution

• Incorporates adjustable high humidity and low temperature dials for easy adjustments in any climate zone

SPECIFICATIONS

• Advanced Features: Pick-A-Flow™ speed selector, ECM motor with SmartFlow technology, and built-in humidity and temperature settings

• Air Volume Supply (CFM): @0.2 and 0.3= 50, 60, 70, 80, 90, 100, 110, 130, [email protected]=50, 60, 70, 80, 90, 100, 110, 130, 130

• Power Consumption (Watts): 50 CFM=8.2, 60=9.3, 70=10.0, 80=12.4, 90= 13.5, 100=15.3, 110=16.7, 130=22.6, 150=27.3

• Energy Efficiency (CFM/Watt): 50 CFM=7.40, 60 CFM=7.58, 70 CFM=7.64, 80 CFM=7.83, 90 CFM=7.61, 100 CFM, 7.45, 110 CFM=7.05, 130 CFM=6.30, 150 CFM=5.59

• Current (Amps): 50=0.20, 60=0.15, 70=0.16, 80= 0.18, 90=0.20, 100=0.23, 110=0.25, 130=0.33, 150, 0.41

• Power Rating (V/Hz): 120/60

• Motor Type (AC/DC): ECM

• ENERGY STAR® Certified: Yes

• Other Approved Codes and Standards: ASHRAE 62.2, LEED CA Tittle 24

• Duct Diameter: 6 inch

• Mounting Options: Vertical /Horizontal

• Ventilation Design Approach: Supply Ventilation, Balance Ventilation when used with an exhaust fan

• Warranty: 6 year ECM motor/3 year parts

• Industry: Residential, Light Commercial

• Radiation Damper Available: N/A

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	18
Exterior Dimensions (D) (inches)	27.000000
Exterior Dimensions (W) (inches)	16.000000
Exterior Dimensions (H) (inches)	12.000000
Shipping Weight (lbs)	18.000000

Specification
CFM	150
