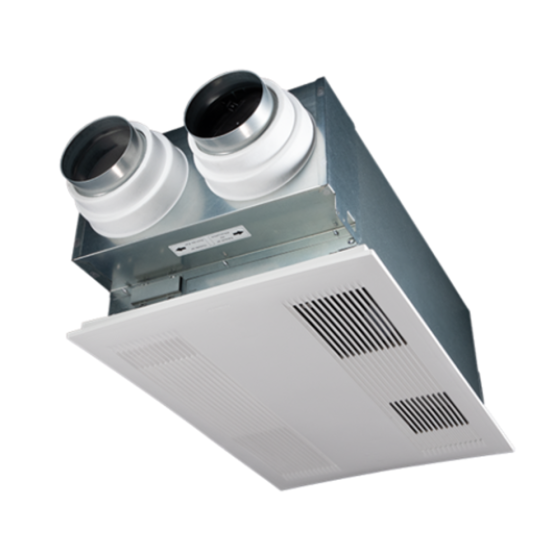

Panasonic® Energy Recovery Ventilator 4" or 5" Round Ducts, 60CFM, 120Vac

Item
FV-06VE1
  • California Prop 65

FEATURES

WhisperComfort® 60 UL Listed ceiling or wall mount Energy Recovery Ventilator provides a tempered fresh air supply and balanced exhaust air flow to maintain neutral pressure throughout the home.

  • • Product is HVI certified for energy recovery and sound
  • • Static pressure access ports make it easy for raters to verify airflow for ASHRAE 62.2 compliance
  • • Suitable for new/remodel, single-family/multi-family, energy efficient projects
  • • Multi-speed selector (20 to 50 CFM) provides customizable airflow
  • • Occupant controllable Boost function moves fan speed to 60 CFM when activated
  • • High efficiency capillary core recovers heat and helps maintain desired moisture levels inside


  • SPECIFICATIONS

    Motor/Blower
  • • ERV supply and exhaust rates shall be manually adjustable for 20 - 30 - 40 - 50 CFM
  • • Two fully enclosed Panasonic DC Electronic Commutated Motors (ECM) rated for continuous run.
  • • ERV shall have Hi / Lo speed occupant boost capability
  • • Power rating shall be 120 volts and 60 Hz.
  • • Two highly efficient blower wheels running on two motors for lower power consumption and decreased noise.
  • • Motors are equipped with thermal cut-off fuse control.

  • Housing
  • • Corrosion Resistant and Galvanized steel body.
  • • Dual 4" intake and exhaust ducts. 5" Duct connections are also available.
  • • Built in backdraft damper on exhaust duct.
  • • Filters on supply and exhaust air extend the life of the ERV core.
  • • Expandable mounting bracket up to 16” on center.

  • Grille
  • • Attractive design using Polypropylene material.
  • • Attaches directly to housing with torsion springs.

  • Warranty
  • • DC Motors: 6 years from original purchase date
  • • All Parts: 3 Years from original purchase date.

  • Maintenance
  • • MERV 13 filter included, replacements available

  • ERV Core Technology
  • • Indoor and outdoor air passes through Panasonic’s capillary core technology. This process tempers supply air while transferring moisture and energy.
  • • Built in Frost Prevention Mode prevents the core from freezing. Frost Prevention Mode is free of interaction and operates without intervention.
  • Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) 25
    Exterior Dimensions (D) (inches) 25.000000
    Exterior Dimensions (W) (inches) 17.000000
    Exterior Dimensions (H) (inches) 10.000000
    Shipping Weight (lbs) 25.000000
    Specification
    CFM 60
