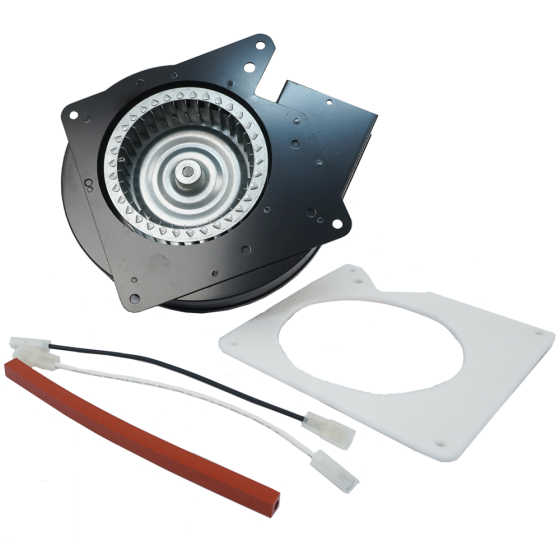

C-Frame Inducer Motor Kit 1/30HP, 3000RPM, 115Vac, 1.2A
Item
66501
FEATURES & BENEFITS
• Ambient Temp.: 40°C
• Amps: 1.20
• Bearings: Ball
• Certifications: UL
• Enclosure: Open
• H.P.: 1/30
• Hertz: 60
• Includes: Mounting Hardware Included
• Insulation Class: B
• Material: Metal
• Motor Type: Shaded Pole
• Mounting Option: Mounting Holes
• NEMA Frame: C-Frame
• Overall Length (In.): 5.3
• Overload Protection: Automatic
• Phase: Single
• RPM: 3000
• Speeds: 1
• Voltage: 115
REPLACES
• Fasco - 7002-2975
• Fasco - A200
• AllTemp - FB-RFB495
• Lennox - 101202-1
• Lennox - 10120201
• Lennox - 102359-01
• Lennox - 24W95
• Lennox - 31L5501
• Lennox - 7002-2975
• Lennox - 77-149-00
• Lennox - lb-113219A
• Nidec - N200
• US Motors - N200
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 6 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 6.000000 |
