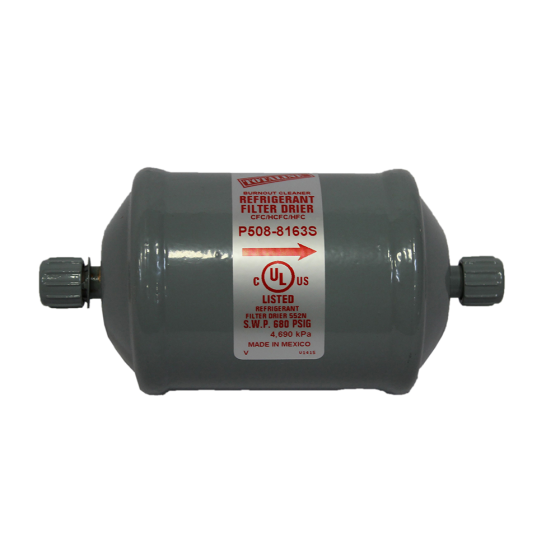

Totaline® Liquid Line Filter Drier 3/8" ODF 16cu. in. (For Burnouts)
Item
P508-8163S
APPLICATIONS
• The P508 series liquid line filter drier was designed for maximum effectiveness in the cleanup of systems following a severe burnout where a maximum capacity for water and acids is essential.• This series utilizes a molded block of activated alumina, molecular sieve, and activated carbon. This blend of activated alumina and activated carbon will remove the acids and products of a compressor burnout.
FEATURES & BENEFITS
• Solid Copper Fittings• Corrosion Resistant Epoxy Powder Paint Finish
• Rugged Steel Shell (Shock Resistant)
• Wax Control for Low Temperature Applications
• Extra Moisture and Acid Removal Capacity Specifications:
• Filtration: 40 microns
• Maximum Working Pressure: 680 psig
• UL/CUL File# SA3124
• Desiccant Volume: 16cu. in.
• Connection Inlet Size: 3/8" ODF
• Connection Outlet Size: 3/8" ODF
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1.3669 | Exterior Dimensions (D) (inches) | 2.900000 | Exterior Dimensions (W) (inches) | 6.100000 | Exterior Dimensions (H) (inches) | 1.800000 | Shipping Weight (lbs) | 3.000000 |
Warranty | |
---|---|
Country of Origin | Mexico |
