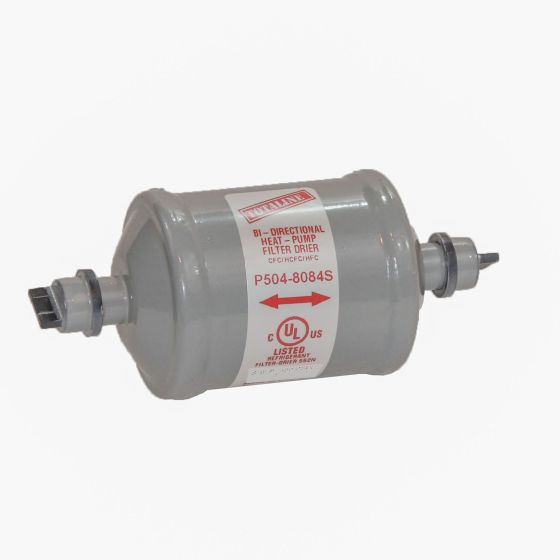

Totaline® Bi-Flow Filter Drier 1/2" ODF 8cu. in.

PRODUCT DETAILS

Totaline New Bi-Directional Filter Drier provides heat pump system protection in heating and cooling cycles Summer & Winter with one compact unit. It reduces complex piping and the resulting costs.

FEATURES & BENEFITS

• For use with CFC & HCFC refrigerants.
• Removes moisture, acids and solids.
• Bi-Directional Eliminates need for external check valves.
• Sealed type.
• Corrosion resistant epoxy powder paint finish.
• May be mounted in any position.
• Reduces compressor maintenance.
• Solid copper sweat connections.
• Desiccant blend - 75% molecular sieve & 25% activated alumina.
• Filtration: 40 microns
• Maximum Working Pressure: 680 PSIG
• UL/CUL file number: SA3124
• Desiccant Volume: 8cu. in.
• Connection Inlet Size: 1/2" ODF
• Connection Outlet Size: 1/2" ODF
