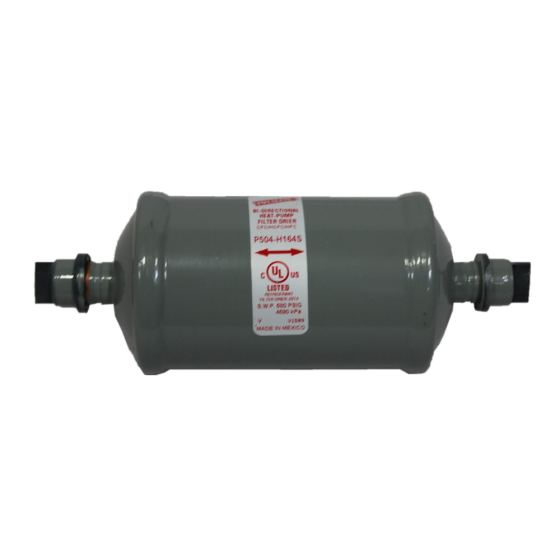

Totaline® Liquid Line Bi-Flow Filter Drier, 1/2" ODF, 16 cu. in.

Item

P504-H164S

SPECIFICATIONS

• Nominal Connection Size: 1/2 Inches

• Max Working Pressure: 680 Pounds per square inch

• Application: Heat pumps

• Body Diameter: 2.5 Inches

• Connections Material and Finish: Copper

• Core Material and Finish: Molecular sieve, activated alumina

• Effective Volume of Desiccant: 16 Cubic Inches

• Filtration: 40 microns

• Height: 2.5 Inches

• Length: 6.17 Inches

• Refrigerant: CFC, HCFC, HFC

• Shell Material and Finish: Painted steel

• Type: HEAT PUMP SOLID CORE

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	9.65
Exterior Dimensions (D) (inches)	2.913400
Exterior Dimensions (W) (inches)	2.677200
Exterior Dimensions (H) (inches)	5.433100
Shipping Weight (lbs)	13.000000

Warranty
Country of Origin	Mexico
