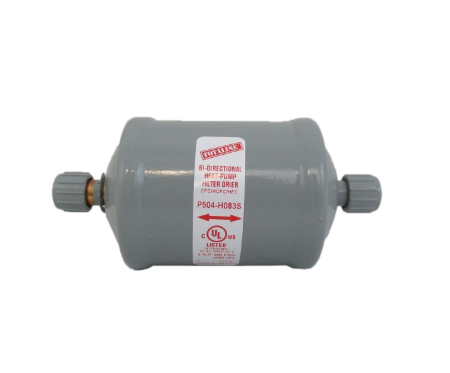

Totaline Bi-Flow Filter Drier 3/8" ODF 8cu. in.

Item
P504-H083S
  • California Prop 65

APPLICATIONS

• Bi-Directional Liquid Line Filter Drier for heat pump applications.

FEATURES & BENEFITS

• Use with CFC, HCFC, HFC refrigerants.
• 75% molecular sieve and 25% activated alumina blocks.
• Internal check valves allow flow and filtration in either direction.
• Desiccant Volume: 8cu. in.
• Connection Inlet Size: 3/8" ODF
• Connection Outlet Size: 3/8" ODF

Specification
Size 3/8"
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1.04
Exterior Dimensions (D) (inches) 2.9921
Exterior Dimensions (W) (inches) 3.0709
Exterior Dimensions (H) (inches) 4.4882
Shipping Weight (lbs) 3.0000
Warranty
Country of Origin Mexico
