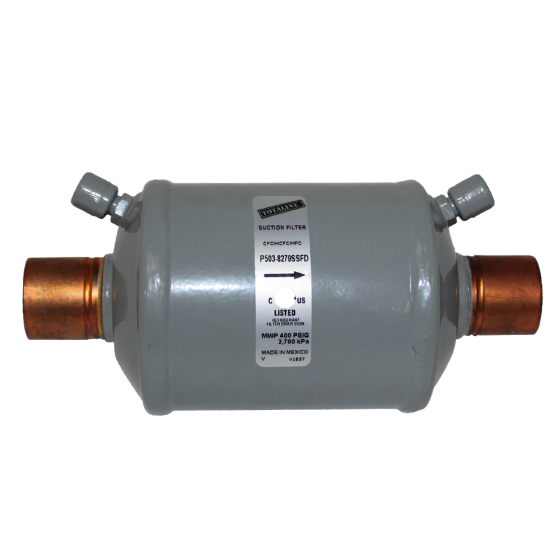

Totaline® Suction Line Filter Drier 1-1/8" ODF 27cu. in. (Beaded Core)
Item
P5038279SSFD
PRODUCT DETAILS
Totaline standard compacted bead suction filter drier for use after burnout or when contaminant removal.
For use with CFC, CHFC, & HFC refrigerants.
Suction line filter drier used for moisture, acid and contaminant removal.
FEATURES & BENEFITS
• Corrosion Resistant Epoxy Powder Paint Finish.• Solid Copper Fittings
• Dual Access Valves
• Max Working Pressure: 400 psig
• Filtration: 40 microns.
• UL & CSA Approved: UL file number: SA3124, CSA file numbers: LR100624, LR32462.
• Desiccant Volume: 27cu. in.
• Connection Inlet Size: 1-1/8" ODF
• Connection Outlet Size: 1-1/8" ODF
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.1 | Exterior Dimensions (D) (inches) | 3.600000 | Exterior Dimensions (W) (inches) | 7.800000 | Exterior Dimensions (H) (inches) | 3.800000 | Shipping Weight (lbs) | 3.000000 |
