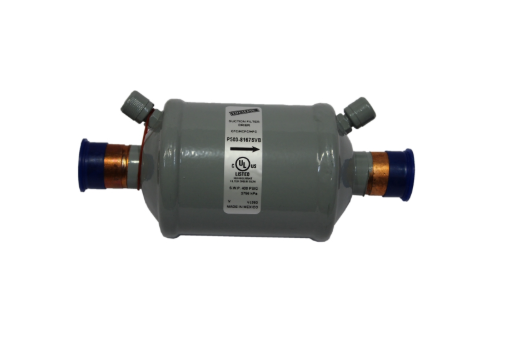

Totaline® Suction Line Filter Drier 7/8" ODF 16cu. in. (Solid Core - For Burnouts)
Item
P5038167SVB
PRODUCT DETAILS
Solid core with special blend to maximize acid, moisture, and wax removal.
For use with CFC, HCFC and HFC refrigerants.
FEATURES & BENEFITS
• Charcoal blend for soluble contaminant and wax removal.• Dual access valves.
• Solid copper fittings.
• Corrosion resistant epoxy powder paint finish.
• Maximum Working Pressure: 500 psig
• Filtration: 40 microns
• UL & CUL Approved: UL file number: SA3124.
• Desiccant Volume: 16cu. in.
• Connection Inlet Size: 7/8" ODF
• Connection Outlet Size: 7/8" ODF
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.65 | Exterior Dimensions (D) (inches) | 2.900000 | Exterior Dimensions (W) (inches) | 7.300000 | Exterior Dimensions (H) (inches) | 1.700000 | Shipping Weight (lbs) | 3.000000 |
