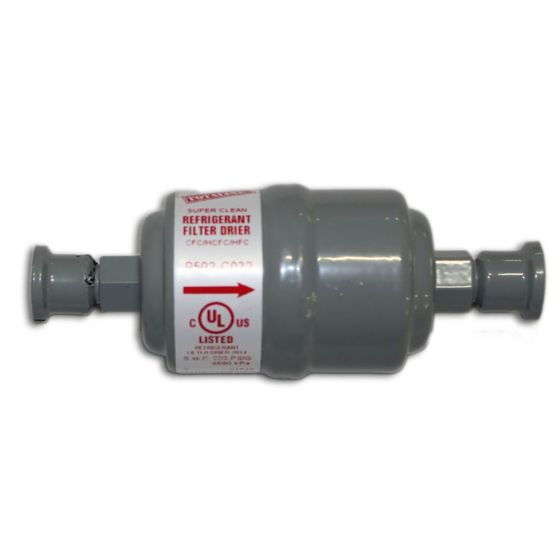

Totaline® Liquid Line Filter Drier 1/4" SAE Male Flare 3cu. in. (Solid Core)
Item
P502-C032
PRODUCT DETAILS
Economy solid core liquid line filter drier ideal for use w/CFC & HCFC refrigerants.
Solid copper fittings.
High moisture and acid removal.
Corrosion resistant paint.
Shock resistant steel shell construction.
FEATURES & BENEFITS
• Desiccant Blend: Activated Alumina with molecular sieve.• Maximum working pressure: 680 psig
• UL/CUL file number: SA3124
• Filtration: 40 microns
• Desiccant Volume: 3cu. in.
• Connection Inlet Size: 1/4" SAE Male Flare
• Connection Outlet Size: 1/4" SAE Male Flare
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.3 | Exterior Dimensions (D) (inches) | 4.500000 | Exterior Dimensions (W) (inches) | 1.625000 | Exterior Dimensions (H) (inches) | 1.625000 | Shipping Weight (lbs) | 1.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
