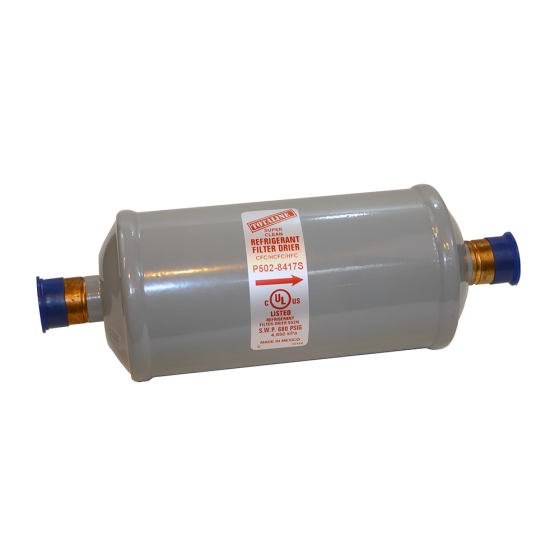

Totaline Liquid Line Filter Drier 7/8" ODF 41cu. in. (Beaded Core)

Item
P502-8417S
  • California Prop 65

PRODUCT DETAILS

Compacted bead filter drier, with a fine 20 Micron outlet pad for maximum filtration.

Universal Replacement for CFC, HCFC, and HFC Refrigerants.

Filtration first for more effective use of surface area of desiccant.

Solid copper connection for easy installation.

FEATURES & BENEFITS

• Filtration: 20 microns
• Maximum working pressure: size 03-75 680 psig
• Desiccant blend – 75% molecular sieve and 25% activated alumina for high moisture and acid capacity
• Desiccant Volume: 41cu. in.
• Connection Inlet Size: 7/8" ODF
• Connection Outlet Size: 7/8" ODF

Specification
Size 7/8"
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 2.4
Exterior Dimensions (D) (inches) 3.6000
Exterior Dimensions (W) (inches) 10.5000
Exterior Dimensions (H) (inches) 3.2000
Shipping Weight (lbs) 5.0000
Warranty
Country of Origin Mexico
