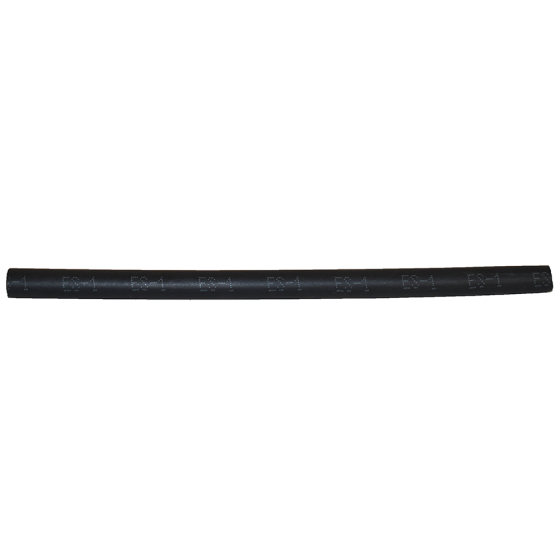

Totaline® Dual Wall Heat Shrink Tubing .225" Diameter, 6" Length 6pk (1/16"-3/16")
Item
P298-DWA1
FEATURES & BENEFITS
• Flame-retardant, adhesive-lined, (semi-rigid) Olyoletin
• Tubing environmentally seals and protects components and splices
• DWA has a high shrink ratio, only a few sizes are needed to cover a wide range of splice and component diameters
• Adhesive bonds to a wide variety of plastics, rubber, & metals, including polyethylene, neoprene, & steel
• Offers rugged protection against abrasion, vibration, and flexing
• Extended temperature range
• Shrink Ratio Approximately: 4:1
• Minimum shrink temperature: 230°F (110°C)
• Continuous operating temperature: -40°F to 266°F (-40°C to 130°C)
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.01 | Exterior Dimensions (D) (inches) | 2.400000 | Exterior Dimensions (W) (inches) | 7.500000 | Exterior Dimensions (H) (inches) | 0.600000 | Shipping Weight (lbs) | 0.030000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
