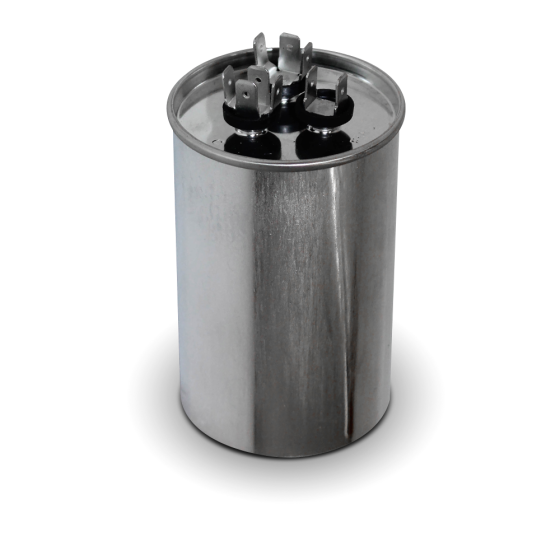

Totaline® Dual Round Run Capacitor 35/5µF, 440v
This capacitor series is designed specifically for the motor run applications where the capacitors are used in conjunction with permanent split capacitor type motors. They may be used on either 50 or 60-Hertz systems but should not be used at higher frequencies or in applications where higher frequency harmonics are present. For those types of applications the General Purpose AC Capacitors should be used.
FEATURES & BENEFITS• Reliability tested to meet 60,000 service hours, per United Technologies application parameters.
• High grade metallized Polypropylene Film (5 to 12 microns thick) .
• RoHS Compliant .
• UL Approved with Pressure Sensitive interrupter of 1000 AFC.
• Performance tested per United Technologies reliability requirements for capacitance ratings, power factor, dissipation factor and high voltage testing.
• Capacitance: 35/5µF.
• Tolerance: +/- 6%.
• Voltage: 440.
• Op Temp: -29° to +68°C.
|California Prop 65||Yes|
|Cap Type||Run Capacitors||Microfarad Rating||35/5µF|
|Weights and Dimensions|
|Operating Weight (lbs)||0.4||Exterior Dimensions (D) (inches)||1.300000||Exterior Dimensions (W) (inches)||1.600000||Exterior Dimensions (H) (inches)||4.600000||Shipping Weight (lbs)||1.000000|
